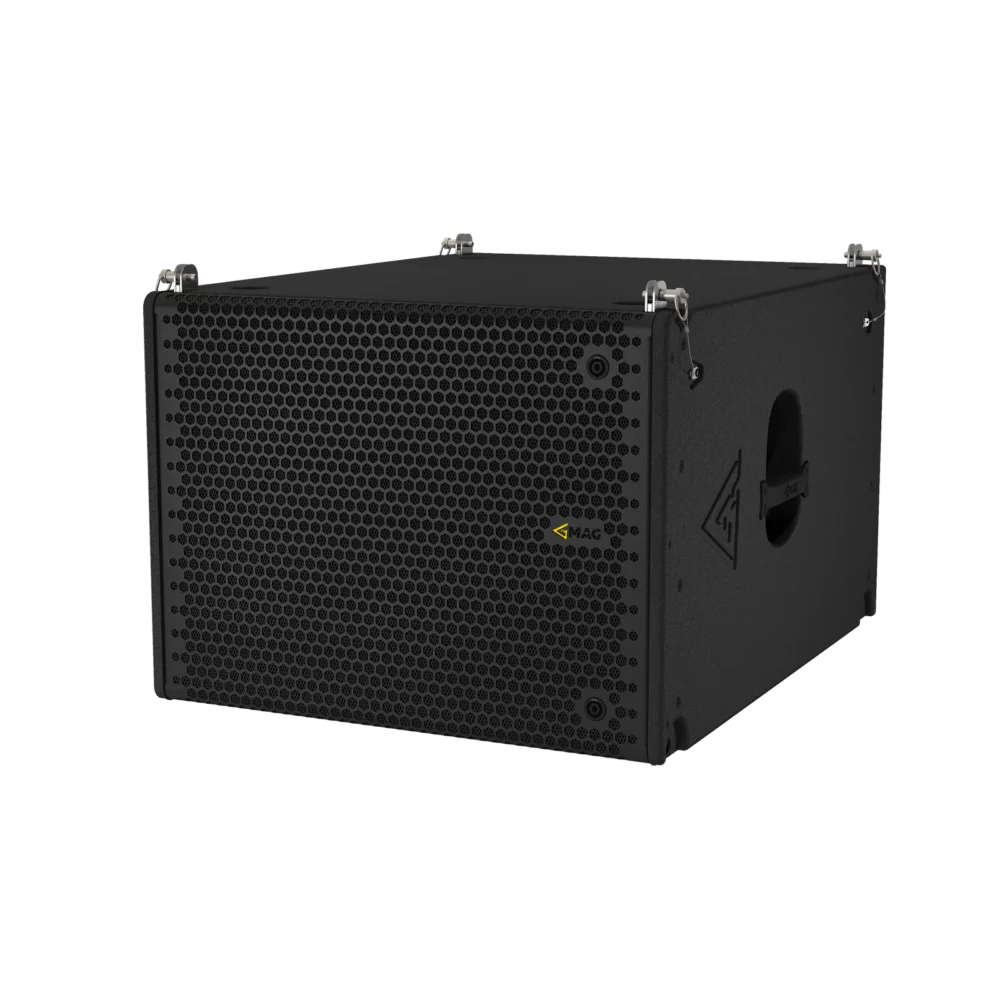

WASP-S12 (Discontinued)
Passive arrayable subwoofer
The WASP-S12 has been designed to be a reliable low-frequency support for the WASP line array. Based on a 12’’ LF woofer, the system delivers 140 dB of sound pressure. Featuring specifically designed integrated hardware, WASP-S12 can be used both in a stack or in a flown cluster.
Main features:
- Components: 12” woofer with 4” voice coil
- Nominal power: 950 W
- Frequency response: 42 Hz – 140 Hz
- Peak SPL: 140 dB
- Mounting: Integrated flying hardware, M20 distance pole adapter
WASP has received the most advanced components to assist with the task of creating the ultimate compact line-array solution.
Thoroughly designed cabinets, the most advanced proprietary mounting system, and a wide selection of mounting and connectivity accessories were called in to provide the fast mounting/dismounting times, as well as ease of transportation and storage.
The MAG Audio WASP Series has continuously refined and substantially changed over the past two years. We have extensively updated our subwoofer lineup, introducing the punchy S15 model and our pride – the flagship touring subwoofer with a flyable option – the S218.
The suspension and stacking WASP frame options have been upgraded, now featuring a lightweight version and the capability to use a laser inclinometer with both models. A comprehensive set of accessories has also been fully created.
To simplify navigation through these innovations and the WASP Series as a whole, we have created a video guide showcasing its components, capabilities, and usage methods.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive arrayable subwoofer |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 42 Hz – 140 Hz |
| Peak SPL | 140 dB |
| Sensitivity (1W/1m) | 101 dB |
| LF Driver | 12", 4" VC |
| Impedance | 8 Ohm |
| Nominal power | 950 W |
| Connections and physical data | Parametr |
| Connectors | 4 x Neutrik Speakon |
| Dimensions (W x H x D) | 620 x 464 x 765 mm; 24.4" x 18.3" x 30.1" |
| Net weight | 45 kg; 99.2 lbs |
| Shipping weight | 48 kg; 105.8 lbs |
| Mounting | Intergrated flying hardware |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black |
