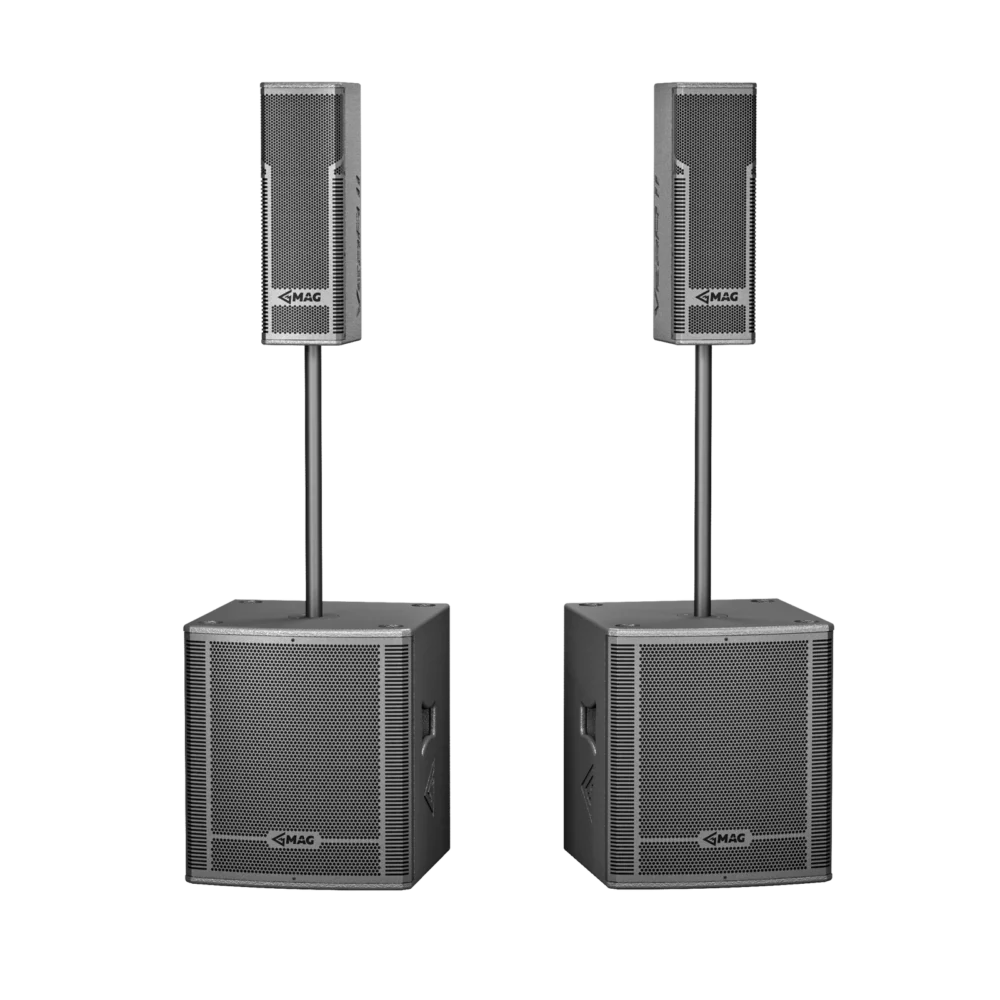

Vera II (Discontinued)
Powered plug-and-play portable set
Vera II is the complete solution where a portable, powerful, and reliable sound system is a must-have. It features two 2 x 6” plus 1” low-distortion driver satellites and two effective 12” subwoofers. Driven by an integrated Powersoft® amplifier and processing, Vera II is easy to set up and use, providing 2400W of nominal power.
Main features:
- Components: Subwoofer transducer – 12″, Full-range speakers transducers – 2 x 6” + 1”
- Total power: 2400 W
- Frequency response: 45 Hz – 20 kHz
- Max SPL (calculated): 128 dB
- Mounting: 35 mm Pole mount adapter; 3 х M10 flying points (satellite speaker); M20 distance pole adapter (subwoofer)
Technical data
| Main | Parametr |
|---|---|
| Type | 2х Subwoofers + 2x Full-range speakers, Powered plug-and-play portable set |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 45 Hz – 20 kHz |
| Max SPL (calculated) | 128 dB |
| Subwoofer transducer | 12" |
| Full-range transducers | 2 x 6” + 1” |
| Nominal Coverage Angle H × V | 90° x 40° (one side) |
| Total system power | 2 400 W |
| Amplifier power, W | 4 800 W |
| Amplifier | Class D with DSP, passive cooling |
| Connections and physical data | Parametr |
| Connectors TOP | Speakon for satellite |
| Connectors SUB | top out Speakon, XLR input, XLR output |
| Dimensions TOP | 171 x 538 x 223 mm; 6.7" x 21.2" x 8.8" |
| Dimensions SUB | 480 x 550 x 494 mm; 18.9" x 21.7" x 19.4" |
| Dimensions (W x H x D) | 480 x 1 590 x 494 mm; 18.9" x 62.6" x 19.4" |
| Net weight TOP | 9 kg; 19.8 lbs |
| Net weight SUB | 32 kg; 70.5 lbs |
| Net weight | 43 kg; 94.8 lbs |
| Shipping weight | 52 kg; 115 lbs |
| Mounting | 3 х M10 flying points, 35 mm pole socket, M20 distance pole adapter |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
