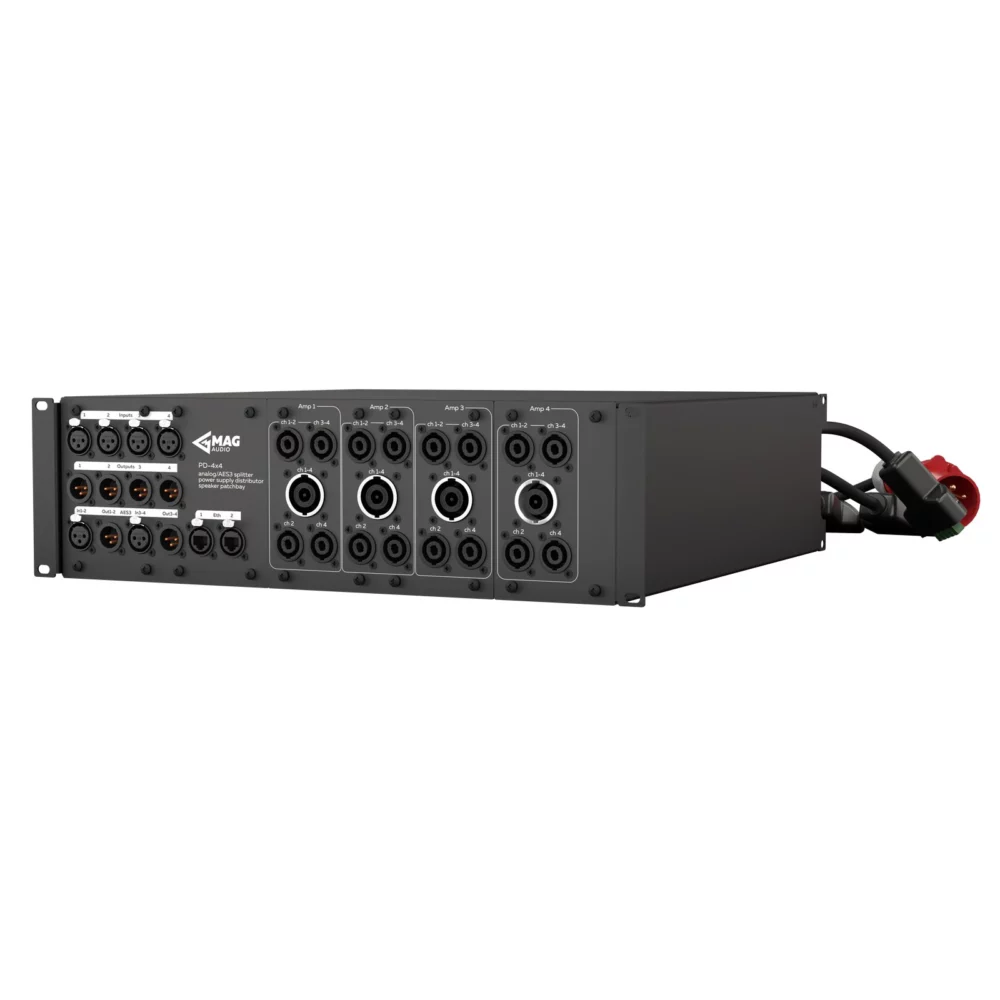

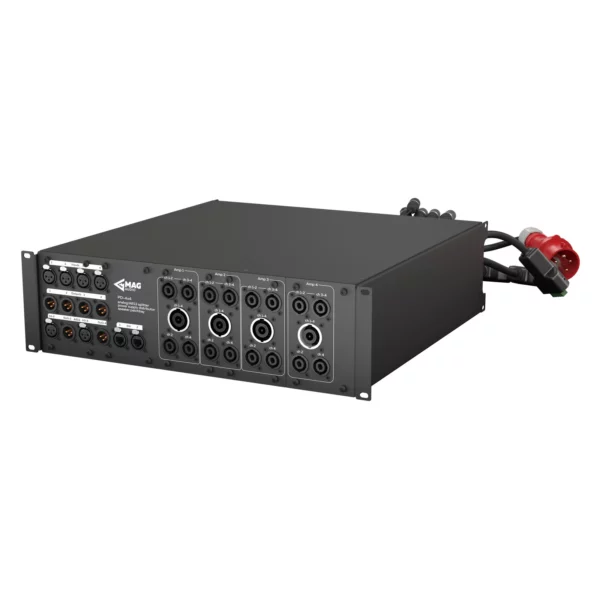

PD-4×4
Power Distributor
The PD-4×4 is a power distributor that allows you to connect several sound amplifiers and serves to branch the main power cable for the most correct distribution of power during the mounting and installation of various acoustic systems.

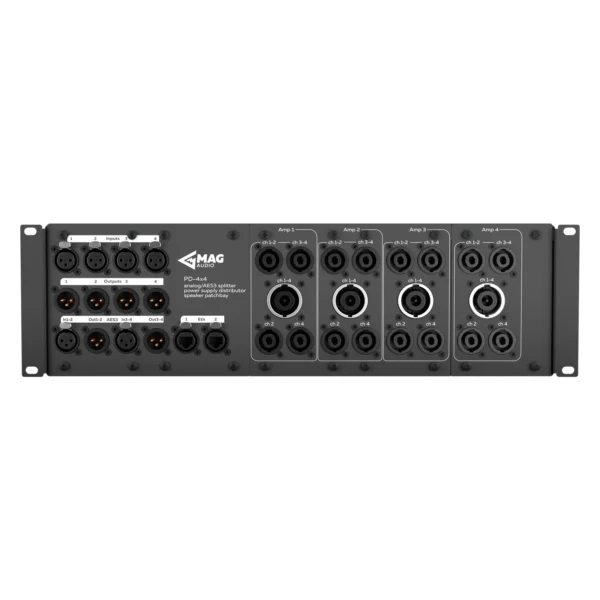

PD-4×4 has a metal case standard 19” with a 3U front connecting panel, providing ultimate mounting convenience for any installation.
INPUTS and OUTPUTS:
- Power Input:
AC 16A 230V - Analog signal connection:
4 x XLR input;
4 x XLR link - AES/EBU:
2 x XLR input;
2 x XLR link - Ethernet:
2 x EtherCon - Speaker outputs:
16 x Speakon 4 pin,
4 x Speakon 8 pin - Main connections:
CEE 32 3P+N+E (32A) input; - Power output:
4 x Powersoft X-Series,
1 x AUX SHUCKO - Connectors:
Neutrik
PCE
The PD-4x4 can be used with a wide range of MAG Audio systems. This Power Distributor is installed in MN Mounting racks, in a touring-grade AmpRack, and MAG Audio WAR universal fly racks hanging for group setups in the sound systems. It has a wide range of different applications for the most correct distribution of power during the mounting.

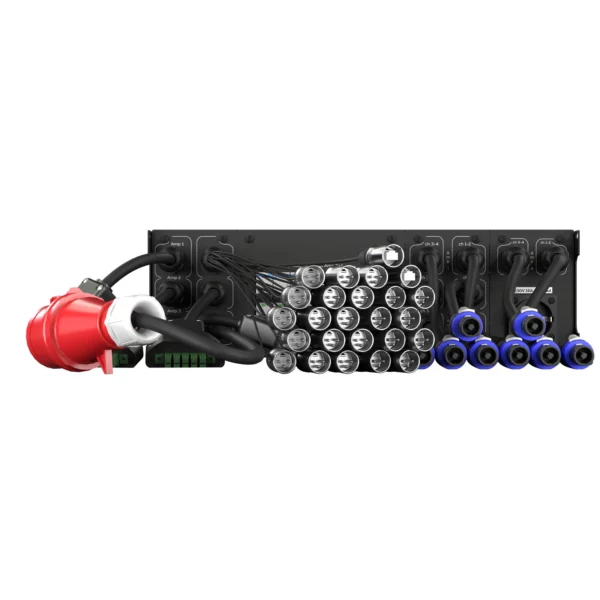

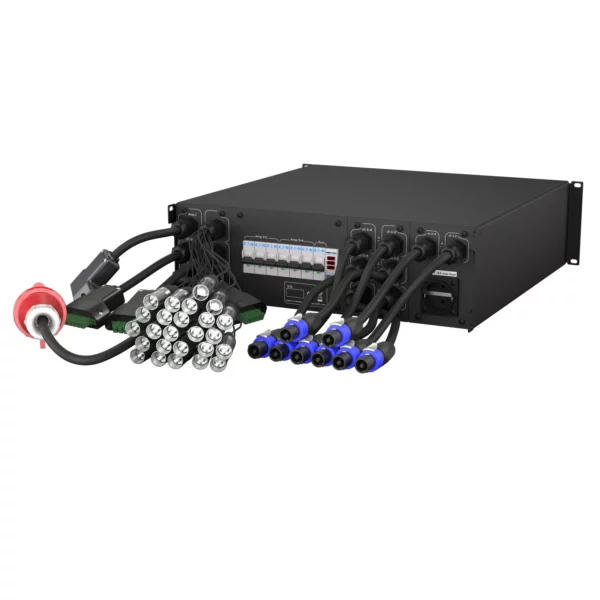

The PD-4x4 provides convenient and easy connections to various audio and cinema equipment using inputs, outputs, and cables located on the front and rear panels.
Technical data
| Main | Parametr |
|---|---|
| Functions | Power Distributor |
| Acoustical & Electrical data | Parametr |
| Power Input | AC 16A, 230V |
| Analog signal connection | 4 x XLR input, 4 x XLR link |
| AES/EBU | 2 x XLR input, 2 x XLR link |
| Ethernet | 2 x EtherCon |
| Speaker outputs | 16 x Speakon 4 pin, 4 x Speakon 8 pin |
| Main connections | CEE 32 3P+N+E (32A) input |
| Power output | 1 x AUX SHUCKO, 4 x Powersoft X-Series |
| Other Conectors | Neutrik, PCE |
| Connections and physical data | Parametr |
| 19” Rack size | 3U |
| Dimensions (W x H x D) | 483 x 133 х 492 mm; 19” x 5.2” х 19.4” |
| Net weight | 13.2 kg / 29 lbs |
| Enclosure material | Steel |
