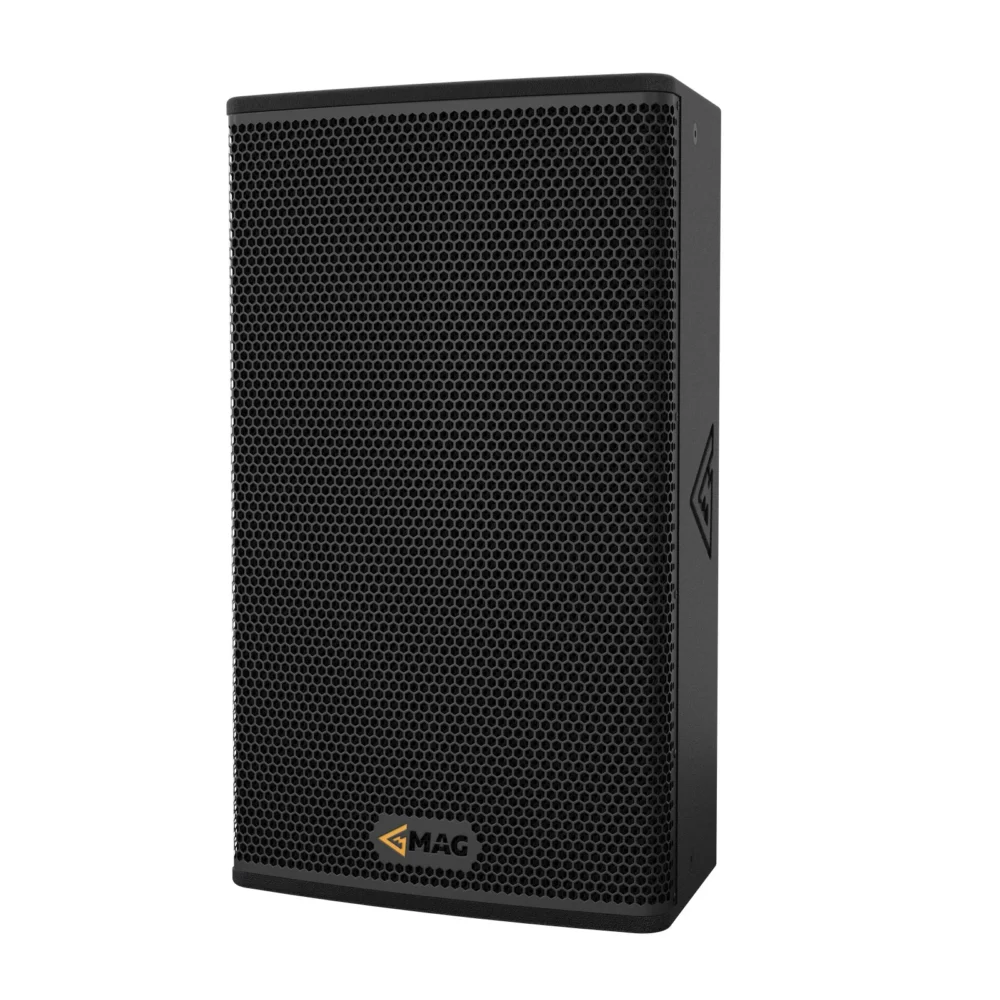

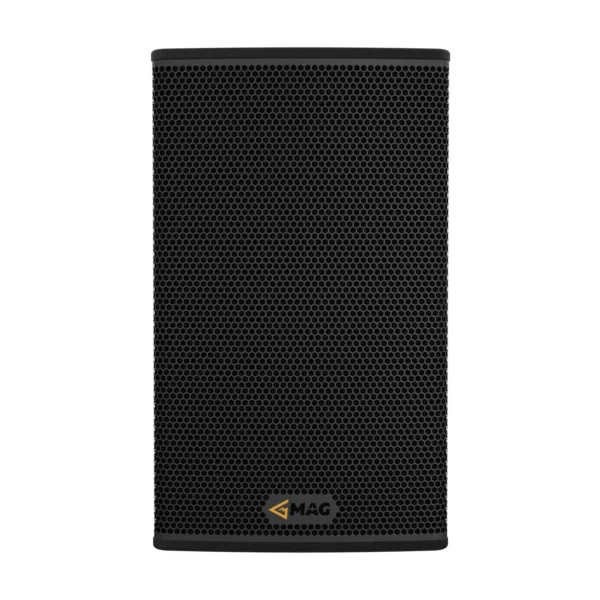

NX 15i
Installation speaker
Passive installation speaker, NX 15i is based on 15″ + 1,5″ drivers and has been purpose-designed for installations. With well-thought-out construction, lightweight and compact size, it provides considerable power and smooth sonic performance, fitting into any and all installations.
Main features:
- Components: 15″, 3″ VC
- Nominal power: 500 W
- Frequency response: 45 Hz – 19 kHz
- SPLmax: 134.5 dB
- Coverage: 80° x 70°
- 10 x M10 mounting points

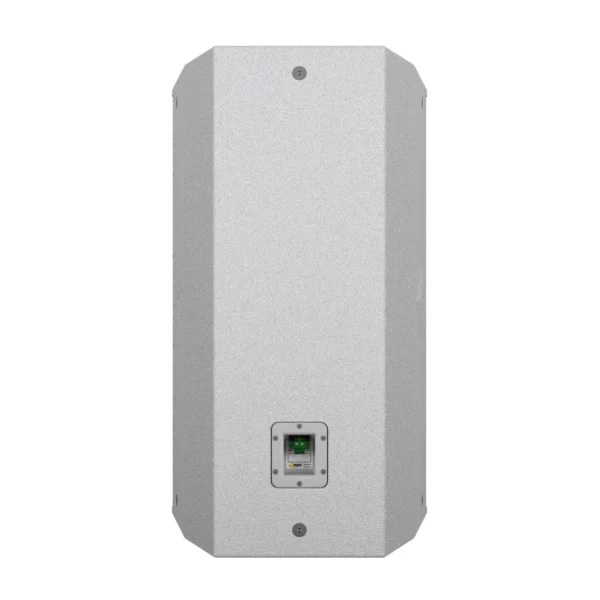

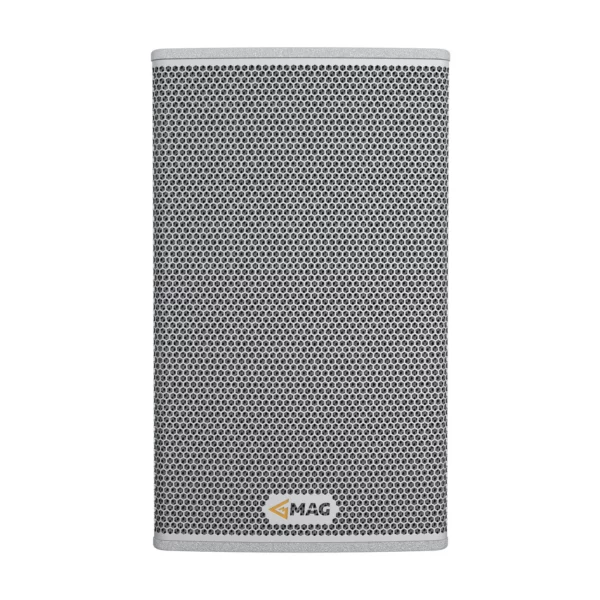

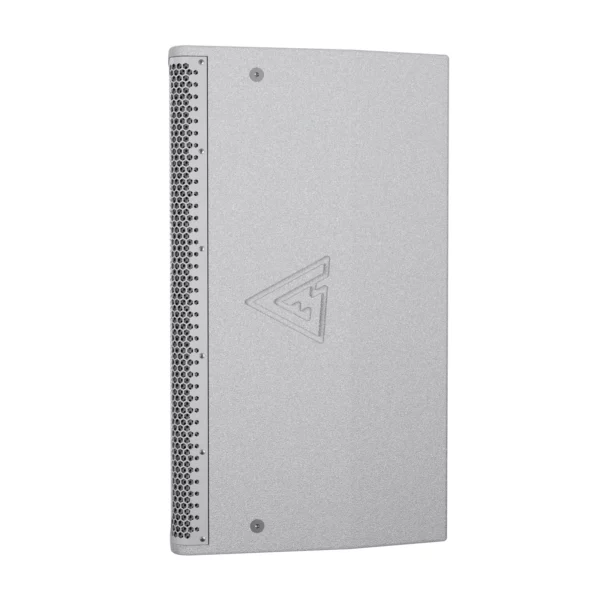

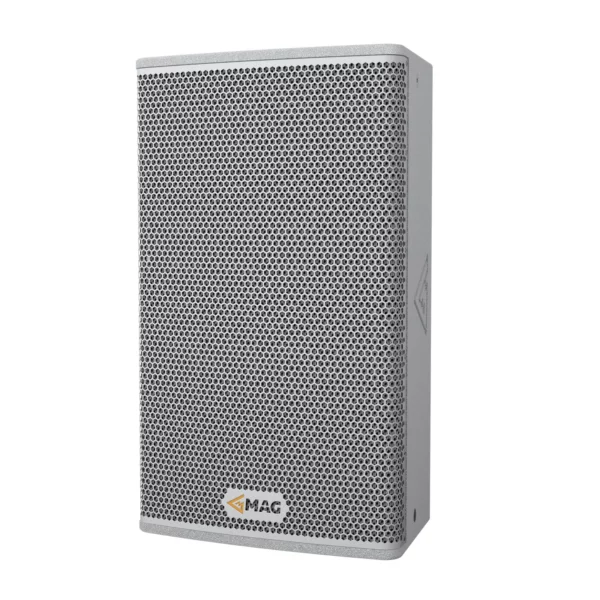

The NX series now includes installation audio systems with IP54-rated weather resistance. Such equipment is ready for use in outdoor theme parks, stadiums, open-air arenas, and other challenging environments. The visual design options are extended as well — all NX systems are now available in white color.
Together with numerous mounting accessories, this manifests the cutting-edge of installation versatility while minimizing the visual speaker footprint.
Here are several cases that perfectly demonstrate how the benefits of the NX series work for modern installation projects.
Mounted to the ceiling, MAG NX nailed it with precise coverage control and low-distortion components. Loudspeakers were coupled with MAG LNX rotation brackets, achieving complete positioning freedom with 360° rotation and 90° tilt.
MAG NX IP entered the interior seamlessly. Flown from the ceiling with MAG HNX and MAG ANX adapters, the cabinets cover the entire space. And the features like water-repellant grill and magnetic systems treated with extra anti-corrosion layers ensure years of failsafe operation in a fierce environment. To drive maximum sonic performance per watt of power consumed, you may use white MAG NX systems along with Powersoft Mezzo amplifiers. MAG HNX horizontal U-brackets provided pan and tilt options, which allowed positioning the loudspeakers as close to the ceiling as possible, blending perfectly with the interior design.
The NX series is a power to be reckoned with in mobile setups, but thanks to great punch and perfect positioning, it is a total win in fixed installations as well. Due to the wide accessory range, the sound can be put right where it belongs, and if needed, placed where it’s not seen.
Technical data
| Main | Parametr |
|---|---|
| Type | Installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 45 Hz – 19 kHz |
| Max SPL | 134.5 dB |
| Sensitivity (1W/1m) | 98.5 dB |
| LF Driver | 15”, 3" VC |
| HF Driver | 1.5", 2.8" VC |
| Nominal Coverage Angle H × V | 80° x 70° |
| Impedance | 8 Ohm |
| Nominal power | 500 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 436 x 735 x 423 mm; 17.2" x 28.9" x 16.6" |
| Net weight | 28 kg; 61.7 lbs |
| Shipping weight | 30 kg; 66.1 lbs |
| Mounting | 10 x M10 mounting points |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
