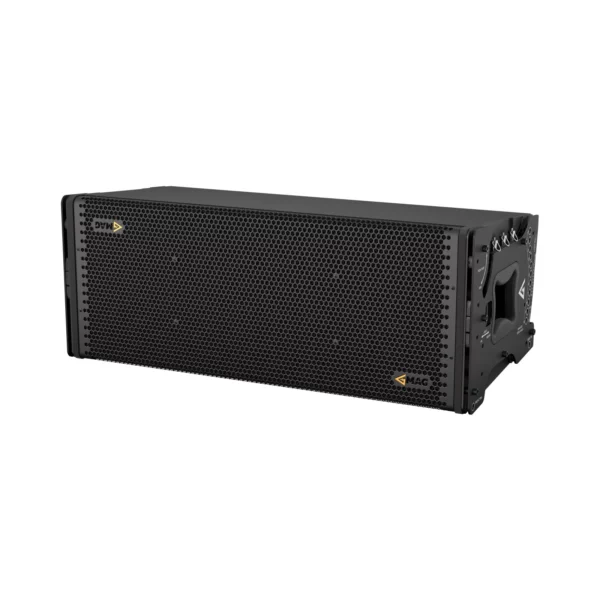

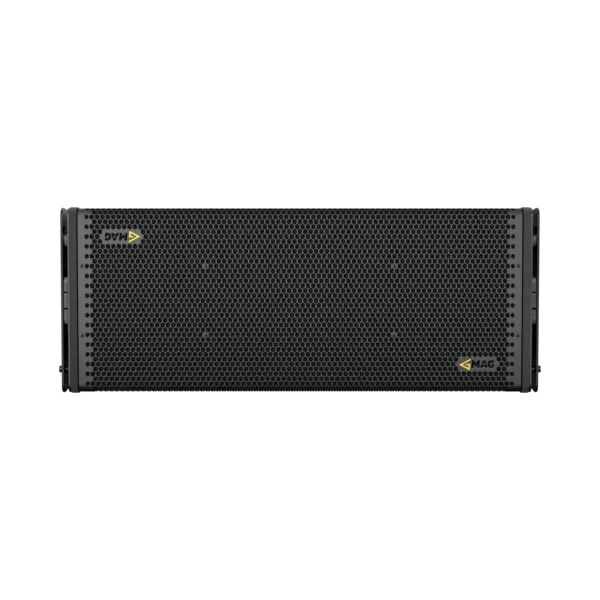

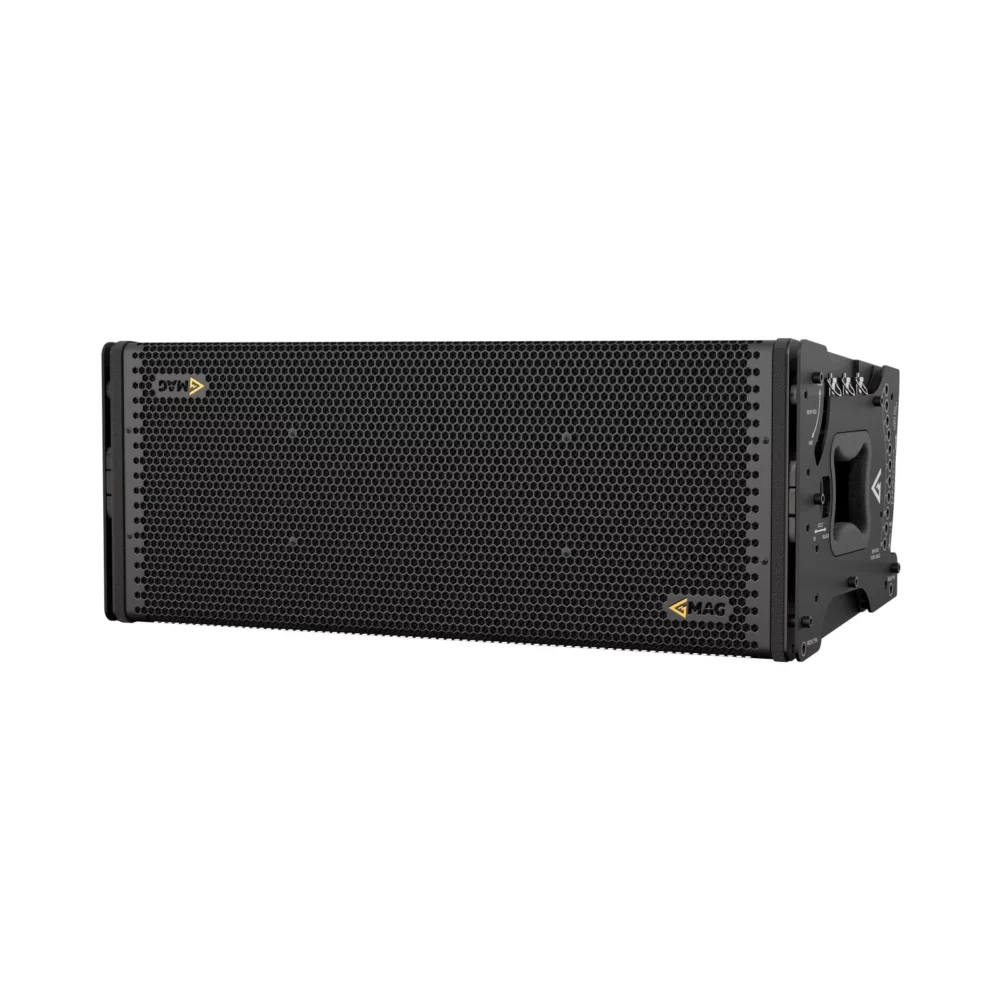

HORNET 12
Passive line array module
The ultimate mid-sized array line array module, HORNET 12 is dual 12”, quad 6”, dual 1,4” HF all-neodymium speaker with immense power handling capacity and maximum SPL output. Incorporating advanced flying hardware concept, HORNET 12 is rapidly mounted from ground carts, and is easily set and tuned up due to natural, balanced sound and high-quality, low-distortion components.
Main features:
- Components: Two 12” woofers with 4” voice coil, Four 6” midranges with 1,5” voice coil
- Nominal power: 2600 W
- Frequency response: 45 Hz – 18 kHz
- Peak SPL: 144 dB

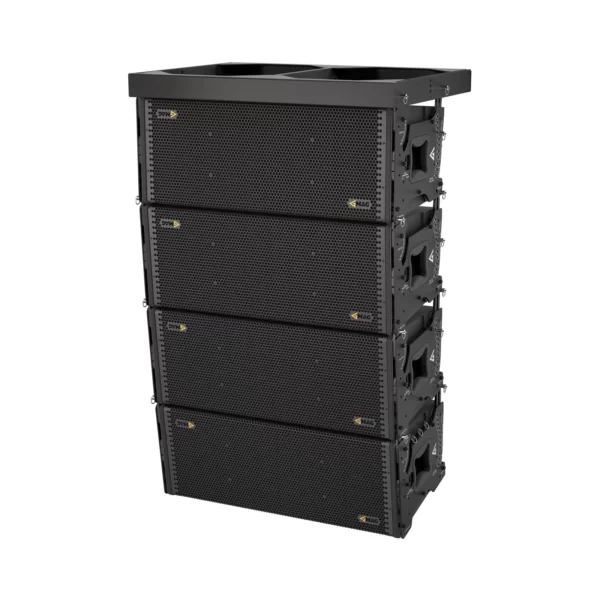

- Mounting: Intergrated flying hardware; 0° – 10° splay angle
Hornet is the newest addition to the MAG Audio family of line arrays. Extremely powerful 3-way all-neodymium Hornet 12 units deliver ultimate sound pressure levels, while retaining control and steering of the sonic picture. Based on its own MAG Audio carefully developed high-efficiency neodymium cone transducers and HF drivers, Hornet 12 was created to be the most compact, lightweight, and powerful system for mid to large-scale indoor and outdoor concerts, touring, sports events, and clubs. Fitted with proprietary design flying hardware, Hornet 12 stacking and flying is quick and easy, with link action easily understood even by the child. Followed by numerous setup options, including flying directly from ground carts, Hornet 12 is the choice for mobile professionals, touring teams, and rental sound.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive line array module |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 45 Hz – 18 kHz |
| Peak SPL | 144 dB |
| Sensitivity (1W/1m) | 99 dB |
| Sensitivity (1W/1m) (in detail) | 99 dB LF / 107 dB MF / 112 dB HF |
| LF Driver | 2 x 12”, 4" VC |
| MF Driver | 4 x 6”, 1.5″ VC |
| HF Driver | 2 x 1.4”, 2.8" VC |
| Nominal Coverage Angle H × V | 110° x Depends on the number of cabinets |
| Impedance | 8 Ohm HF, 8 Ohm LF1, 8 Ohm LF2, 8 Ohm MF |
| Nominal power | 2 600 W |
| Nominal power, W (in detail) | 1 000 W LF1 / 1 000 W LF2 / 400 W MF / 200 W HF |
| Connections and physical data | Parametr |
| Connectors | 2 x NL8MPR Neutrik Speakon |
| Dimensions (W x H x D) | 992 x 381 x 446 mm; 39" x 15" x 17.6" |
| Net weight | 66 kg; 145.5 lbs |
| Shipping weight | 70 kg; 154 lbs |

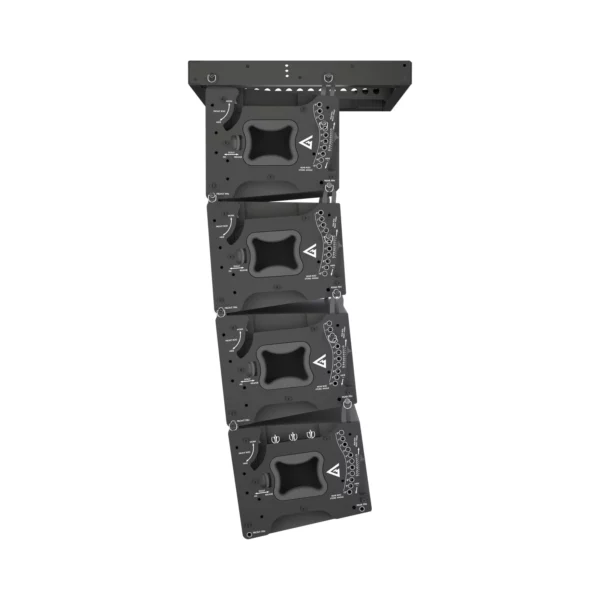

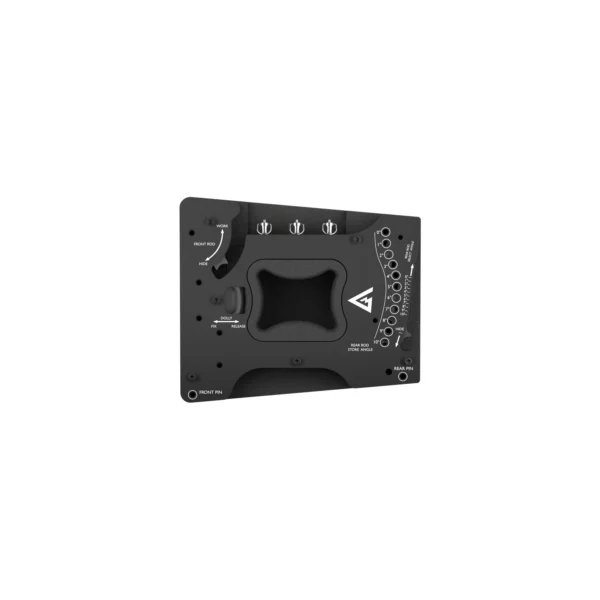

| Mounting | 0° – 10° splay angle, Intergrated flying hardware |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black |
