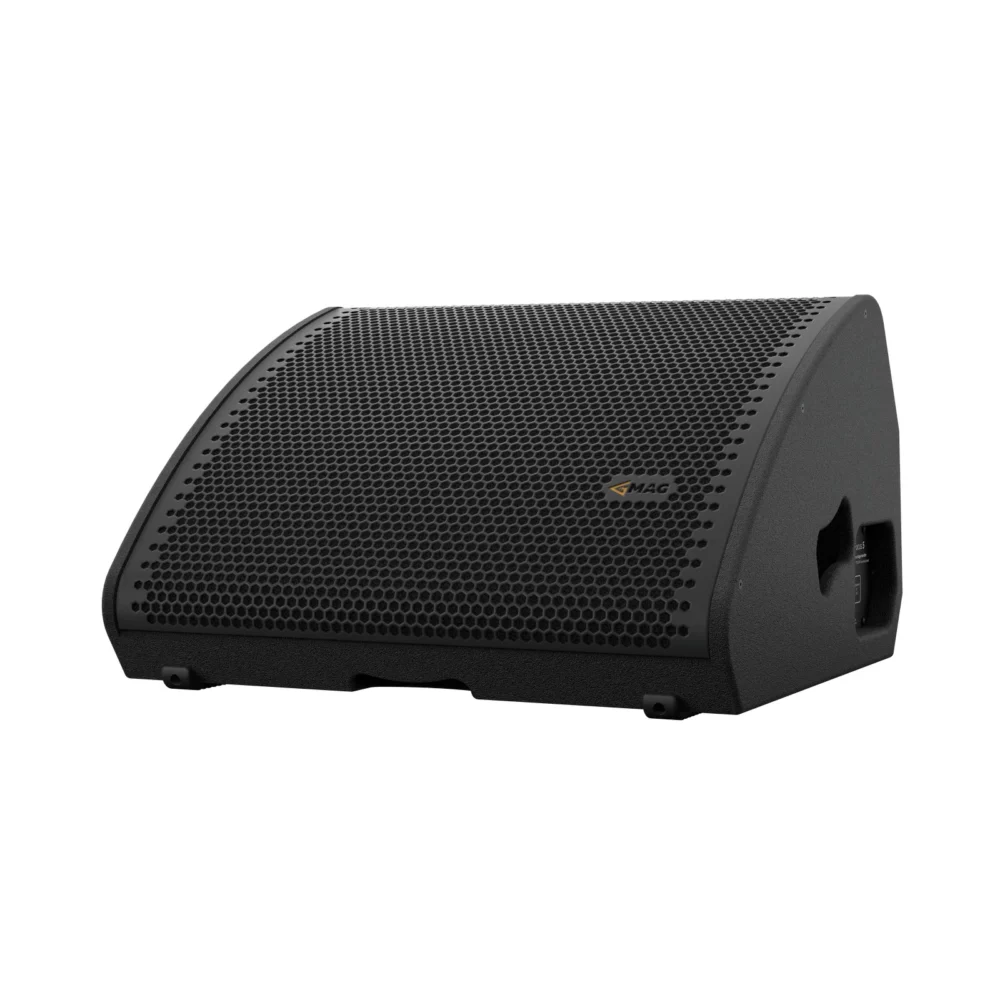

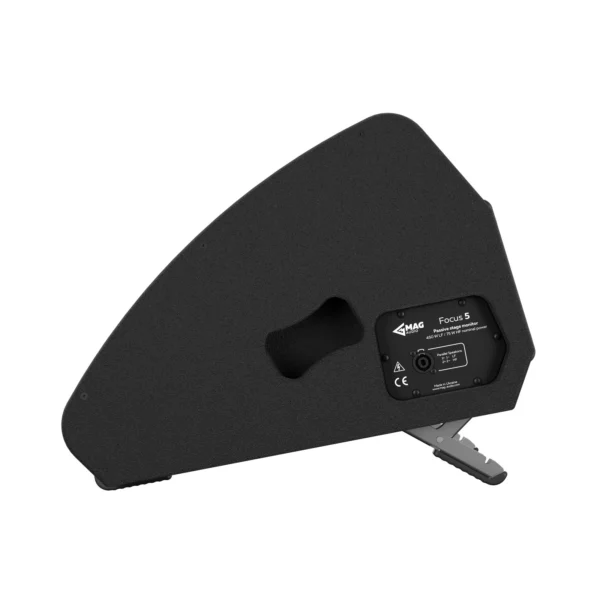

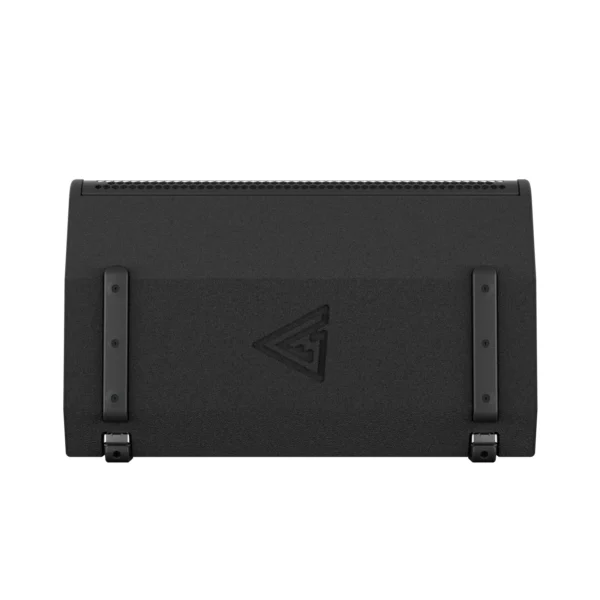

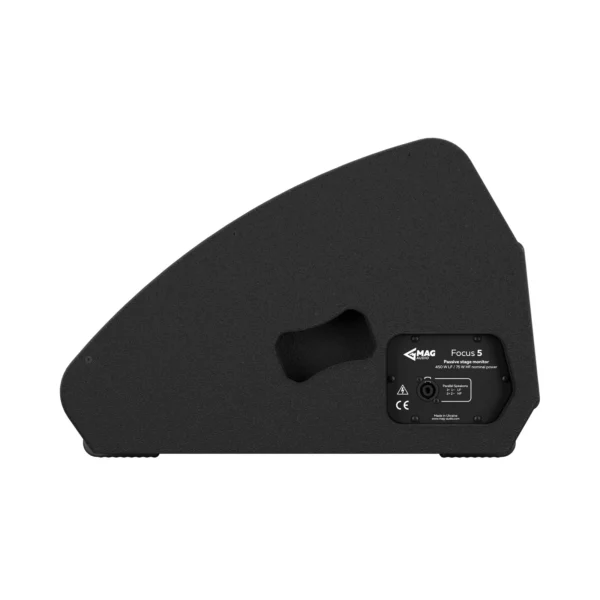

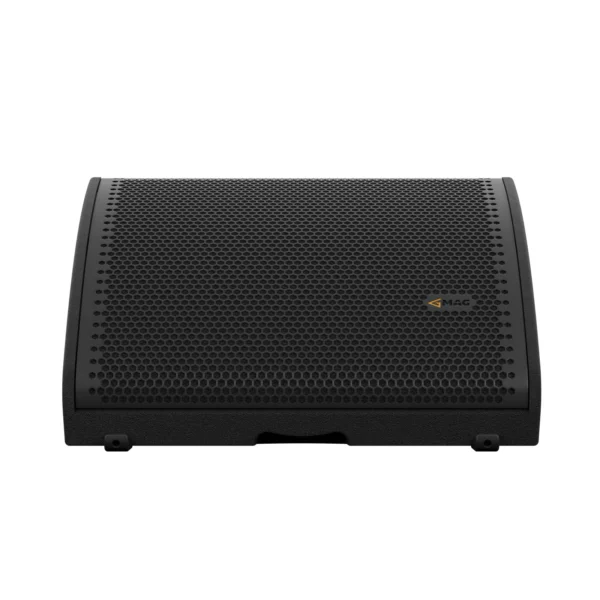

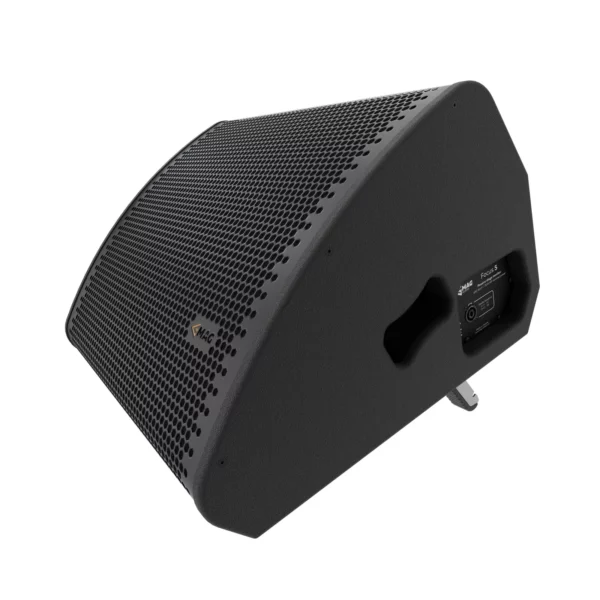

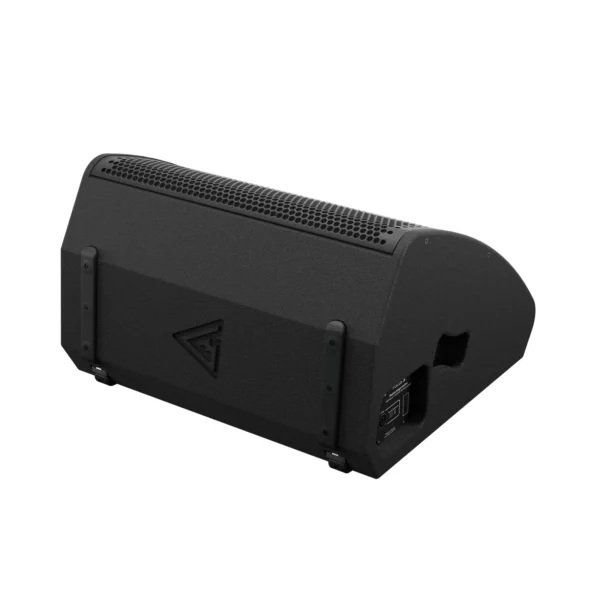

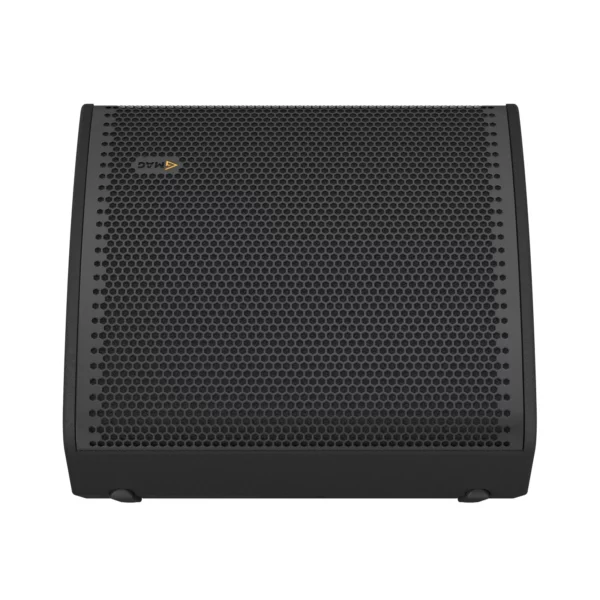

Focus 5
Passive Bi-amp stage monitor
Focus 5 is a discreet yet powerful Passive Bi-amp stage monitor featuring a 15’’ LF coaxial driver. It is essential for performers who prioritize comfort and a well-defined sound image on stage. The system includes a bi-amp connection, allowing precise control over every detail of the stage sound. To enhance its versatility, Focus 5 is designed to be compatible with distance pole adapters, making it suitable for DJ monitoring, backline use, and even FOH applications.
Main features:
- Components: 15” coaxial driver, 3″ / 2,8″ VC
- Nominal power: 600 W
- Frequency response: 48 Hz – 20 kHz
- Peak SPL: 137 dB
- Coverage: 80° x 40°
- Mounting: 35 mm distance pole adapter, angle raisers, and rubber feet
Technical data
| Main | Parametr |
|---|---|
| Type | Passive Bi-amp stage monitor |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 48 Hz – 20 kHz |
| Peak SPL | 137 dB |
| Sensitivity (1W/1m) | 98 dB |
| Coaxial driver | 15”, 3" / 2,8" VC |
| Nominal Coverage Angle H × V | 80° x 40° |
| Impedance | 8 Ohm HF, 8 Ohm LF |
| Nominal power | 600 W |
| Nominal power, W (in detail) | 500 W LF / 100 W HF |
| Connections and physical data | Parametr |
| Connectors | 2 x Neutrik Speakon |
| Dimensions (W x H x D) | 590 x 360 x 541 mm; 23.2" x 14.2" x 21.3" |
| Net weight | 21.4 kg; 47.2 lbs |
| Shipping weight | 23.4 kg; 51.6 lbs |
| Mounting | 35 mm distance pole adapter, angle raisers, feet rubber |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black |
