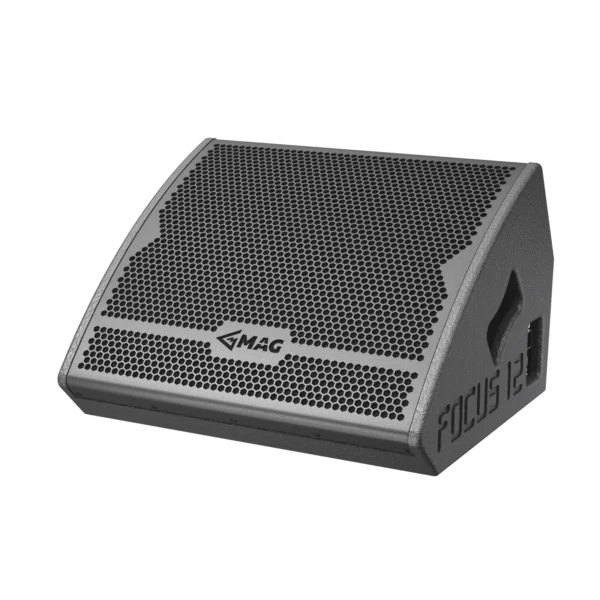

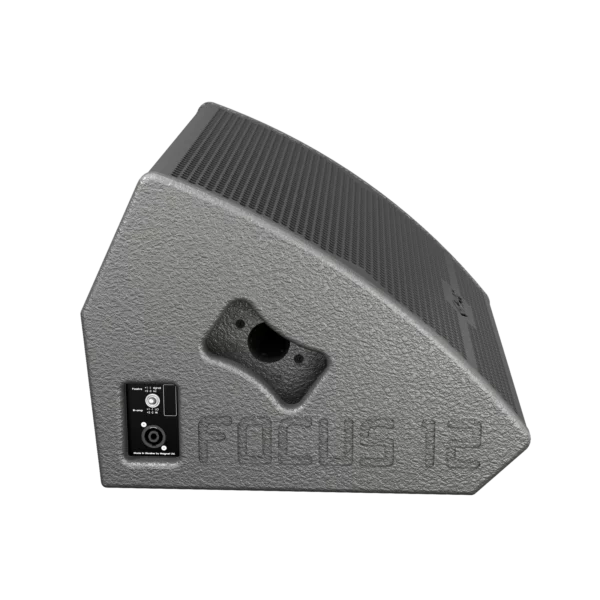

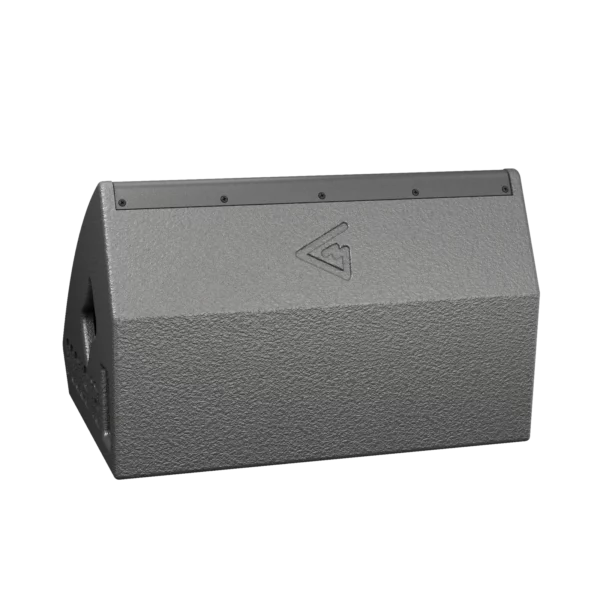

Focus 12 (Discontinued)
Versatile passive stage monitor
Focus 12 – passive stage monitor based on 12’’ LF coaxial driver. Creating a clear and perfectly focused sound picture, the system provides total comfort to a performer on stage. For even more functionality and versatile operation, Focus 12 has been created compatible with distance pole adapters, so it can be used as well for DJ monitoring, backline, and even FOH purposes.
Main features:
- Components: 12” coaxial driver
- Nominal power: 400 W
- Frequency response: 70 Hz – 20 kHz
- Max SPL: 131.5 dB
- Coverage: 60° x 40°
- Mounting: 35 mm distance pole adapter
Technical data
| Main | Parametr |
|---|---|
| Type | Versatile passive stage monitor |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 70 Hz – 20 kHz |
| Max SPL | 131.5 dB |
| Sensitivity (1W/1m) | 96.5 dB |
| Coaxial driver | 12" |
| Nominal Coverage Angle H × V | 60° x 40° |
| Impedance | 8 Ohm |
| Nominal power | 400 W |
| Connections and physical data | Parametr |
| Connectors | 2 x Neutrik Speakon |
| Dimensions (W x H x D) | 490 x 320 x 431 mm; 19.3" x 12.6" x 17" |
| Net weight | 19 kg; 41.9 lbs |
| Shipping weight | 21 kg; 46.3 lbs |
| Mounting | 35 mm distance pole adapter |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black |
