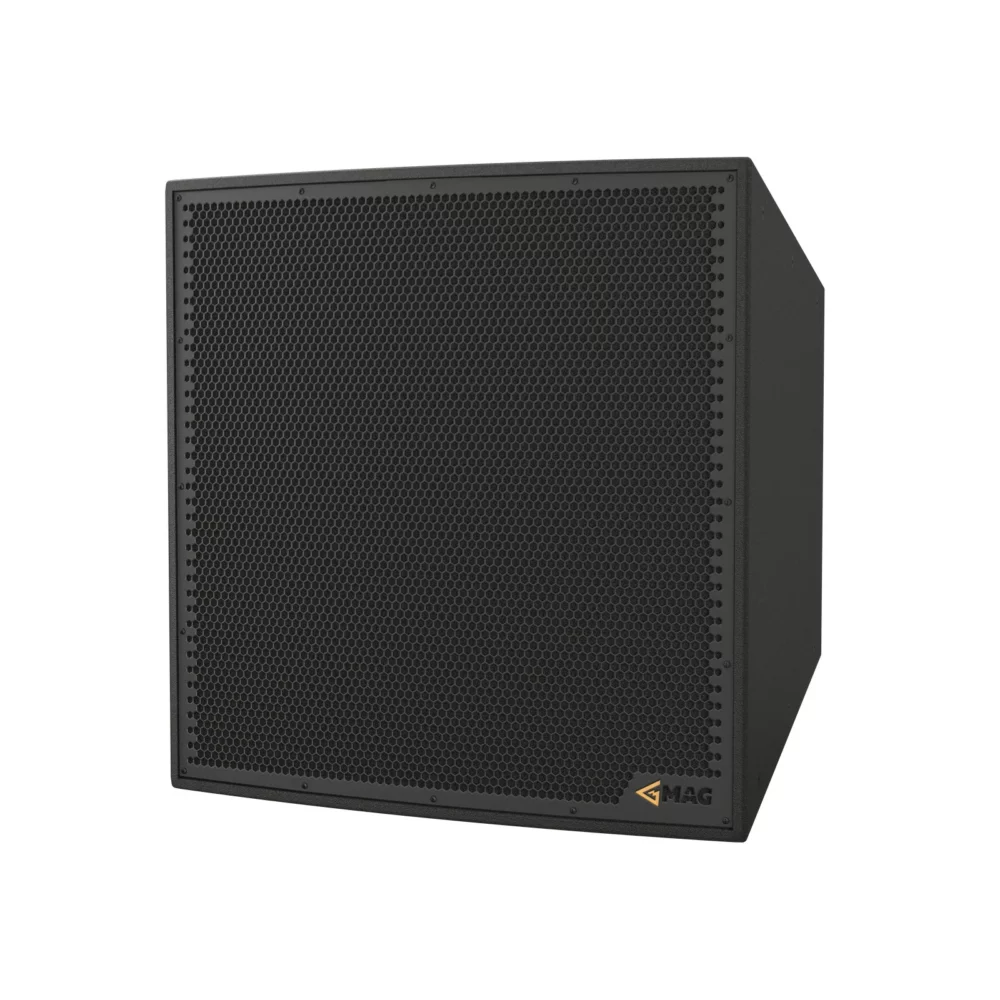

FD-92 (Discontinued)
Weather-resistant installation speaker
FD-92 is a coaxially positioned horn-loaded 15″ and 1,5’’ HF driver speaker in a weather-resistant IP 55 enclosure. Available with a wide selection of HF horns providing various coverage patterns, FD-92s are versatile for long-throw and short-distance applications alike.
Main features:
- Components: 15″ woofer, 1,5″ HF driver in a coaxial configuration
- Nominal power: 900 W
- Frequency response: 86 Hz – 18 kHz
- SPLmax: 138 dB
- Coverage: FD-92.63 – 60° x 30°; FD-92.66 – 60° x 60°; FD-92.93 – 90° x 30°; FD-92.96 – 90° x 60°; FD-92.99 – 90° x 90°
- Mounting: 24 x M10 Mounting points
Field series' design allows for easy coupling, allowing engineers to create a tailored solution for the best coverage and clarity in clustered distributed systems, domed stadiums, arenas, and other large open-air spaces.
With a comprehensive range of mounting accessories engineered for permanent installation, the Field series is prepared to deliver controlled sound into the most difficult installations.
Technical data
| Main | Parametr |
|---|---|
| Type | Weather-resistant installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 86 Hz – 18 kHz |
| Max SPL | 138 dB |
| Sensitivity (1W/1m) | 103 dB |
| LF Driver | 15" woofer, 1.5" HF driver in a coaxial configuration |
| Nominal Coverage Angle H × V | FD-92.63 – 60° x 30°; FD-92.66 – 60° x 60°; FD-92.93 – 90° x 30°; FD-92.96 – 90° x 60°; FD-92.99 – 90° x 90° |
| Impedance | 8 Ohm |
| Nominal power | 900 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 760 x 765 x 700 mm; 29.9" x 30.1" x 27.6" |
| Net weight | 58 kg; 127.9 lbs |
| Shipping weight | 61 kg; 134.5 lbs |
| Mounting | 24 x M10 Mounting points |
| Weather protection | IP 55 weather-protection |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black |
