BEE-12
Passive portable speaker

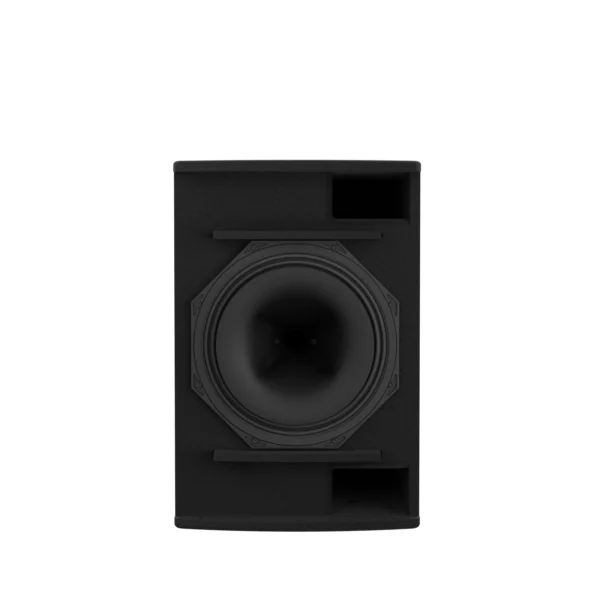

BEE-12 is a passive universal FOH and stage monitoring speaker fitted with a low-distortion 12″ coaxial driver with a 3″ low-frequency voice coil and a 2,8″ voice coil. It is connected using the industry-standard Speakon connector, allowing for simple integration into any sound reinforcement setup.
Main features:
- Components: 12″, coaxial with 3″ voice coil
- Nominal power: 500 W
- Frequency response: 60 Hz – 18 kHz
- SPLmax: 135 dB
- Coverage: 80° x 80°
- 4 x M10 flying points; 35mm pole socket; M10 safety point
MAG Audio proudly announces a new lineup of professional audio systems, perfectly tailored to meet the demands of small rental outfits, music bands, entertainment venues, and much more.
It's a new era where technology refined in premium series is now embodied in versatile, portable systems colloquially known as "workhorses." These systems reliably deliver top-notch performance with maximum flexibility and ease of use, all of this without breaking the bank.
We decided to name this series BEE. The industrious nature and benefits of bees are well-known, so the association is clear. Moreover, an original visual design featuring "honeycomb" grilles adds a distinctive and authentic touch to the product.
The initial roll-out includes two models: BEE-12 and BEE-15, along with their powered counterparts BEE-12A and BEE-15A. At the heart of these systems are proprietary, latest-generation loudspeakers specially designed for this series. Leveraging coaxial driver placement technology, they ensure impeccable phase alignment, smooth and predictable off-axis response, and controlled coverage.

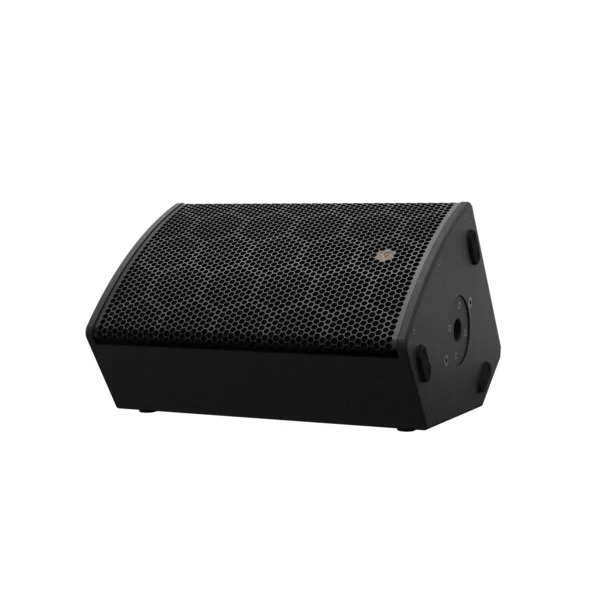

The all-new MAG Audio BEE series features robust, high-quality plywood enclosures that can be used in both floor monitor configurations and as part of portable and zonal systems. Their design focuses on easy handling, quick setup, and a low profile for on-stage use. Thanks to its minimized weight, the BEE series epitomizes simplicity and convenience for mobile professionals on the move.
A variety of mounting options will meet any need: anti-slip rubber feet ensure a stable setup on stage, a 35mm pole adapter, and numerous installation choices via vertical (VBEE-12 / VBEE-15) and horizontal (HBEE-12 / HBEE-15) U-brackets, a fly-bar (ABEE-12 / ABEE-15), and a truss-mount adapter (BEE-Hook).
Whether it's a conference, a rock concert at your local bar, or a cozy lounge patio, MAG’s "little bees" will seamlessly integrate into any project, offering minimal hassle and maximum efficiency and convenience for your business.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive portable speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 60 Hz – 18 kHz |
| Max SPL | 135 dB |
| Sensitivity (1W/1m) | 96 dB |
| LF Driver | 12”, coaxial 3" VC |
| Nominal Coverage Angle H × V | 80° x 80° |
| Impedance | 8 Ohm |
| Connections and physical data | Parametr |
| Connectors | 2 x Neutrik Speakon |
| Dimensions (W x H x D) | 370 x 350 x 550 mm; 14.6" x 13.8" x 21.7" |
| Net weight | 19.7 kg; 43.4 lbs |
| Shipping weight | 21.5 kg; 47.4 lbs |
| Mounting | 35 mm distance pole adapter, 4 x M10 flying points, M10 safety point |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
