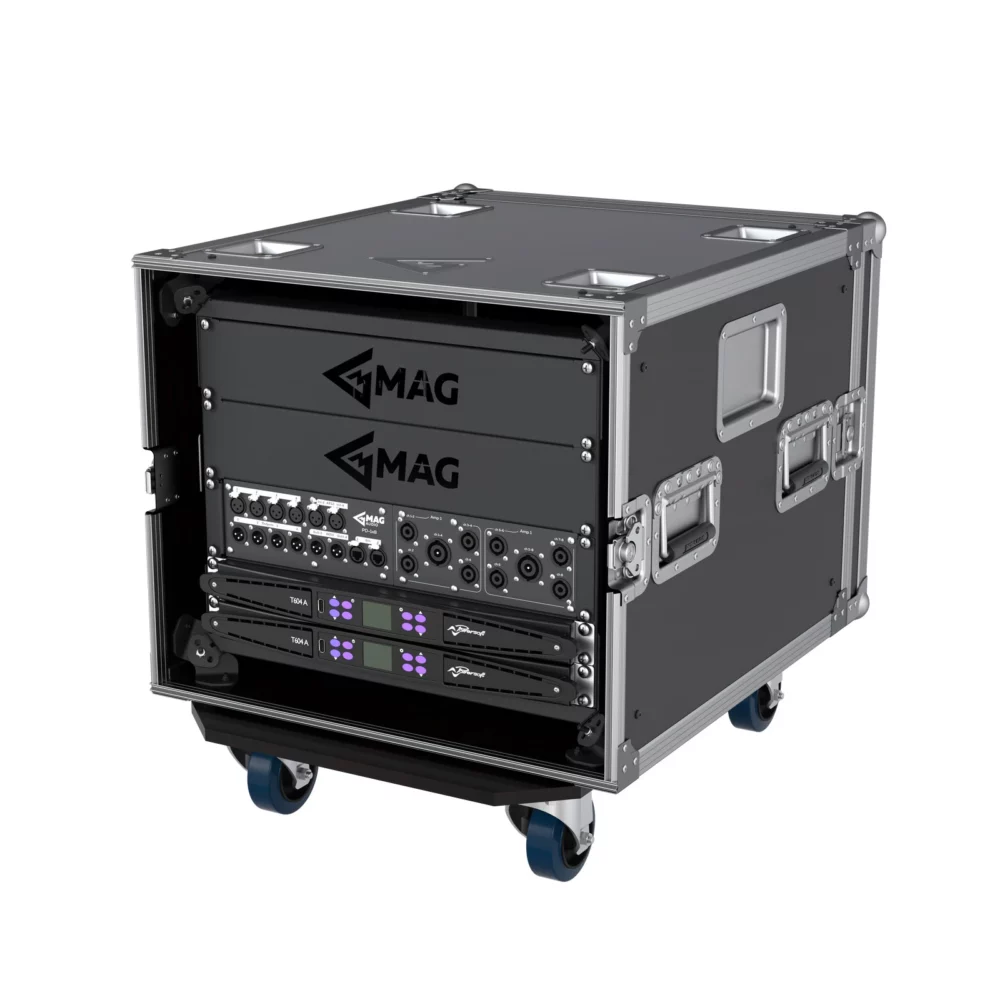

AmpRack 2×604
Amplifier rack
AmpRack 2×604 is a Touring Rack. The amplification rack for Touring Systems, with a maximum power capacity of 2200 W per channel, has analog and digital inputs and networking. The sound system is usually connected to AmpRack – MAG Audio touring racks with 3-phase mains input, circuit breaker mains protection, analog, digital, and networking routing, speaker output,s and Powersoft amplifiers.
Technical data
| Main | Parametr |
|---|---|
| Functions | Touring Rack |
| Acoustical & Electrical data | Parametr |
| Amplifier | Powersoft® T604 – 2 pcs |
| Channel count | 4 |
| Power capacity per channel | 1250 W (8 Ohm), 1500 W (4 Ohm), max. 2200 W (2 Ohm) |
| Frequency range | 20 Hz – 20 kHz (+/-0.5 dBu) |
| Output | 2 Speakon NL4 (connected to a pair of channels) |
| Input Impedance | 20kΩ Balanced |
| Supported interfaces | digital Ethernet network |
| Power Distributor | PD-2T604 |
| Power Input | AC 16A, 230V |
| Analog signal connection | 4 x XLR input, 4 x XLR link |
| AES/EBU | 2 x XLR input, 2 x XLR link |
| Ethernet | 2 x EtherCon |
| Speaker outputs | 2 x Speakon 8 pin, 8 x Speakon 4 pin |
| Main connections | CEE 32 3P+N+E (32A) input, CEE 32 3P+N+E (32A) link |
| Power output | 1 x AUX SHUCKO, 2 x C19 |
| Other Conectors | Neutrik, PCE |
| Connections and physical data | Parametr |
| Standard unit height | 8U |
| Dimensions (W x H x D) | 605 x 645 x 757 mm; 23.8" x 25.4" x 29.8" |
| Net weight | 38 kg; 83.8 lbs |
| Case | Heavy duty flying case |
| Transportation | 100mm castor auto-wheels, Handles for carrying |
