AIR-S26
Passive installation subwoofer

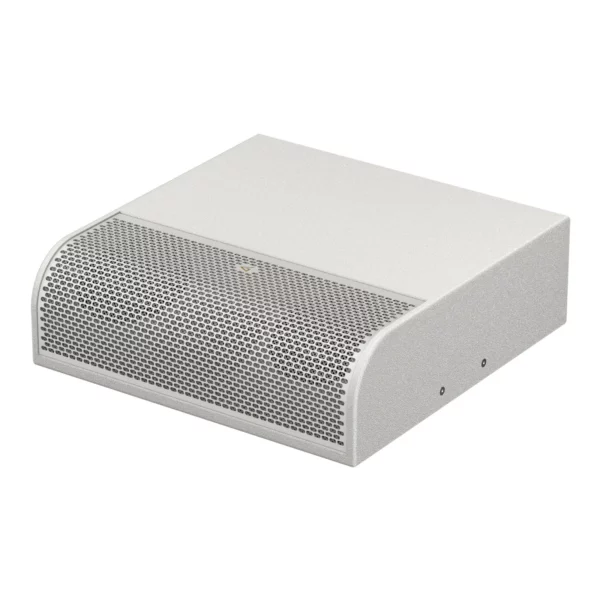

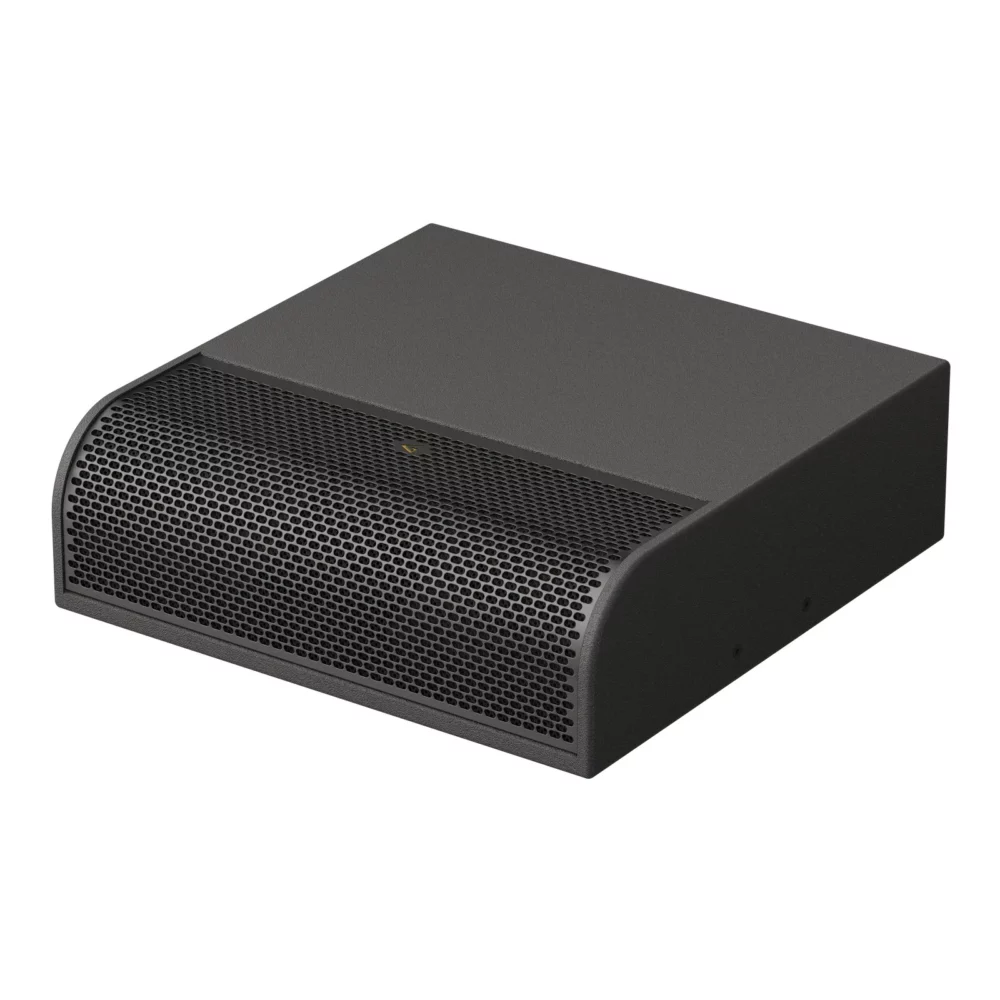

AIR-S26 is a subcompact subwoofer tailor-made to bring a smooth and deep low-frequency reinforcement into settings where space is critical and a visual low profile is a must. It is based on two 6,5” high excursion woofers and has an improved vent design to eliminate the possibility of the slightest noises even when listened to at a very close range.
Additionally, AIR-S26 can be mounted onto the wall using the rear or side mounting points.
Main features:
- Components: 2 x 6.5″, 1.75″ VC LF drivers
- Nominal power: 300 W
- Frequency response: 41 Hz – 200 Hz
- SPLmax: 127,5 dB
- VESA 200 x 200; AIR-CB-26 ceiling mounting points; M10 safety mounting point
MAG Audio continues its parade of new product launches. This time, it is a new addition to the very recently introduced AIR-C installation series. Of course, while emphasizing the high quality of the sound, we couldn't leave out the bass component either. Please meet our MAG AIR S26 Subwoofer!
The installation requirements in most establishments are such that no one wants to clutter the interior of the room with too large speakers. While the requirements for good sound quality remain the same. For this development, we have combined the user feedback with our extensive installation experience, which resulted in the elegant ultra-compact AIR S26 subwoofer.

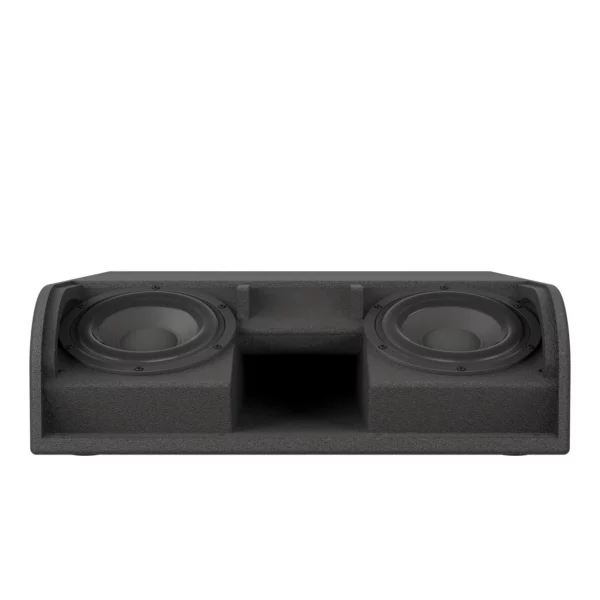

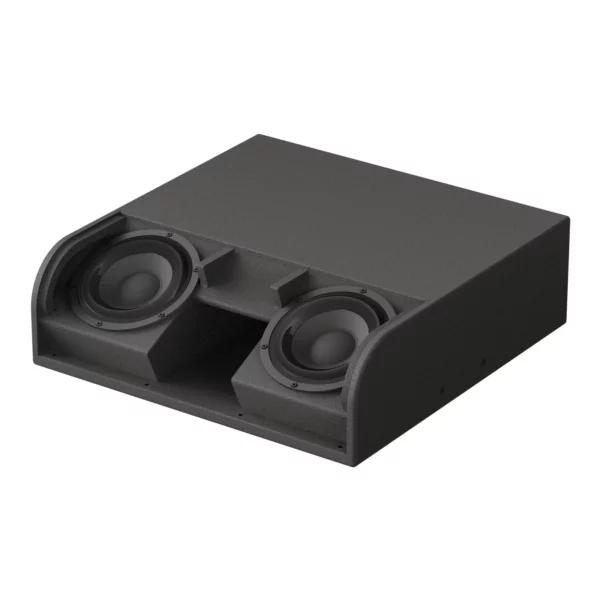

The MAG AIR S26 subwoofer is an elegant low-profile plywood bass-reflex box. It houses two 6.5" woofers with very long-excursion diffusers, which provide a large linear movement without distortion. Its massive, optimized magnet system and high-performance copper coil allow precise speaker control and result in a crisp, rich bass. To reduce distortion, upper and lower aluminum rings are installed on the magnetic system, including those that perform the function of a heat sink. This guarantees high power and output of the speaker system. The speaker itself also includes a triple cooling system.
The vent design is made according to a low-noise scheme, which eliminates the audibility of air flows even at a close range. With its compact size, the MAG Air S26 Sub can provide playback from 41 Hz at a level of -10 dB and peak pressure of 130.5 dB (quarter space).

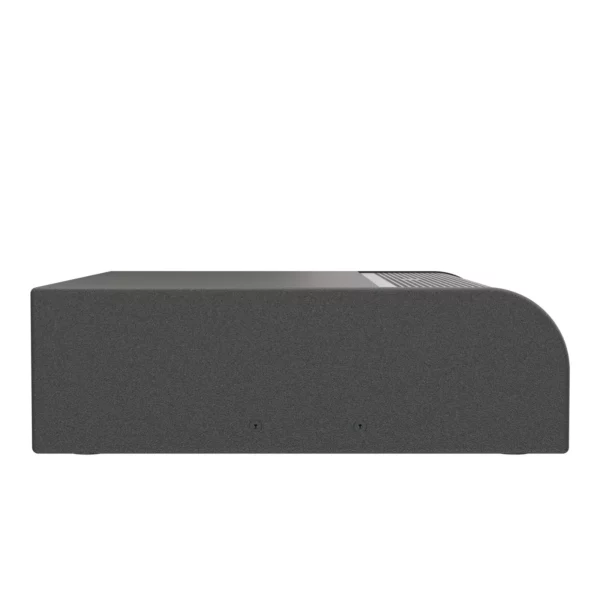

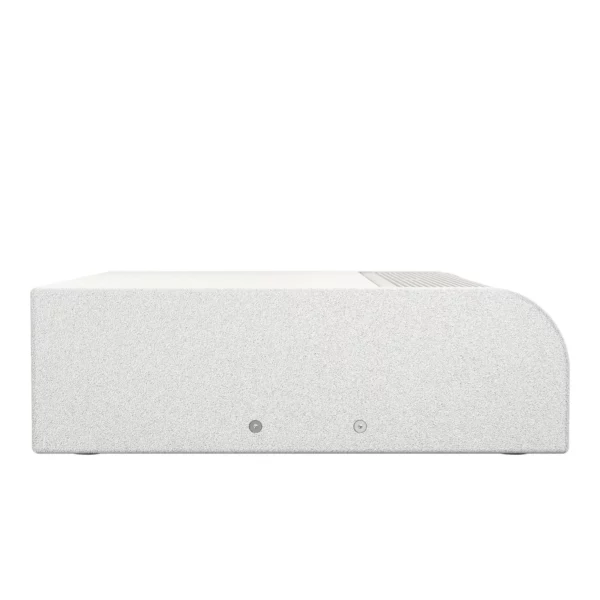

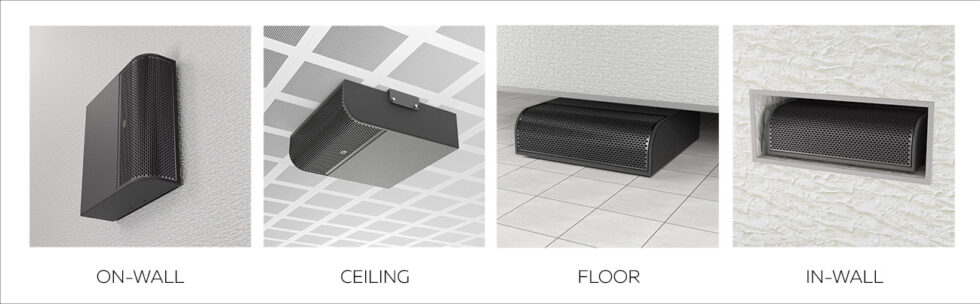

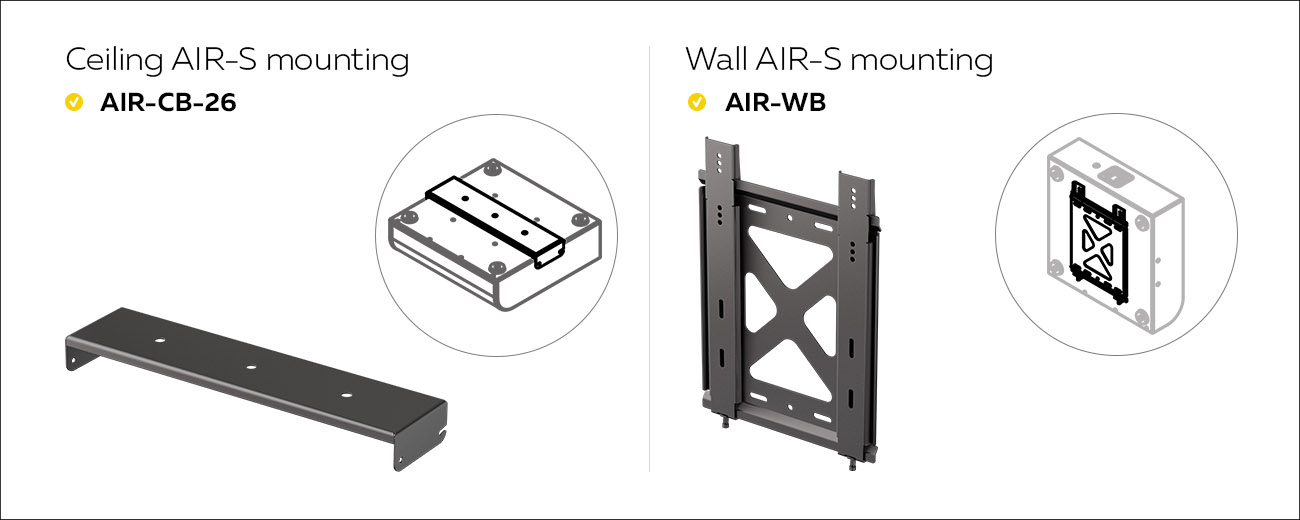

The subwoofer can be supplied with one of two mounting options (wall AIR-WB or ceiling AIR-CB26) or without it. The type of configuration (floor, wall, or ceiling) must be selected at the time of ordering. Additionally, the MAG Air S26 is also very easy to use on horizontal surfaces. Given its low profile (16.5 cm), it can easily fit under a sofa, table, low stage, etc.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive installation subwoofer |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 41 Hz – 200 Hz |
| Sensitivity (1W/1m) | 91 dB (half space) |
| LF Driver | 2 x 6.5", 1.75" VC |
| Impedance | 4 Ohm |
| Nominal power | 300 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 516 x 165 x 500 mm; 20.3" x 6.5" x 16.7" |
| Net weight | 13.9 kg; 30.6 lbs |
| Shipping weight | 14.9 kg; 32.8 lbs |
| Mounting | AIR-CB-26 ceiling mounting points, M10 safety mounting point, VESA 200 x 200 |
| Weather protection | IP54 rated |
| Enclosure material | Polycomp©, wear-resistant paint |

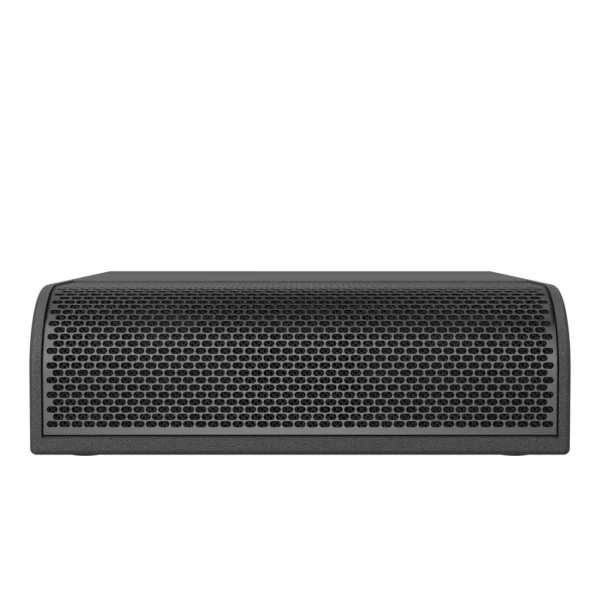

| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
