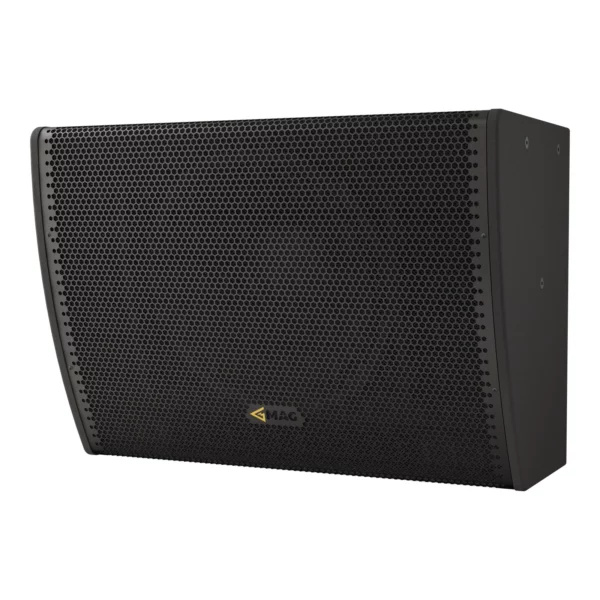

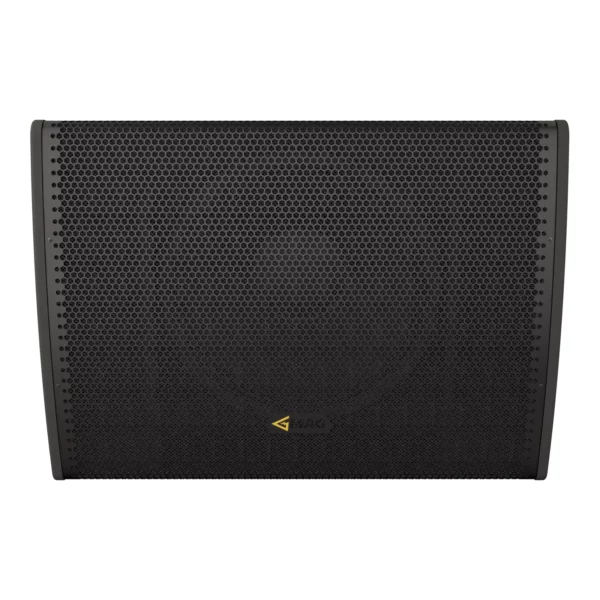

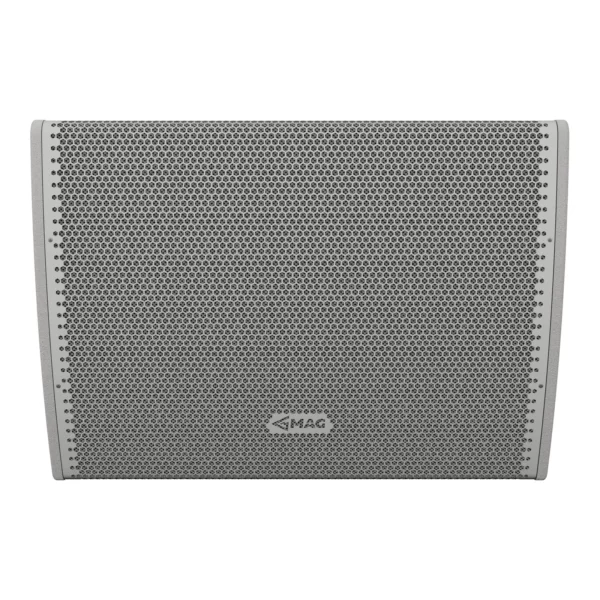

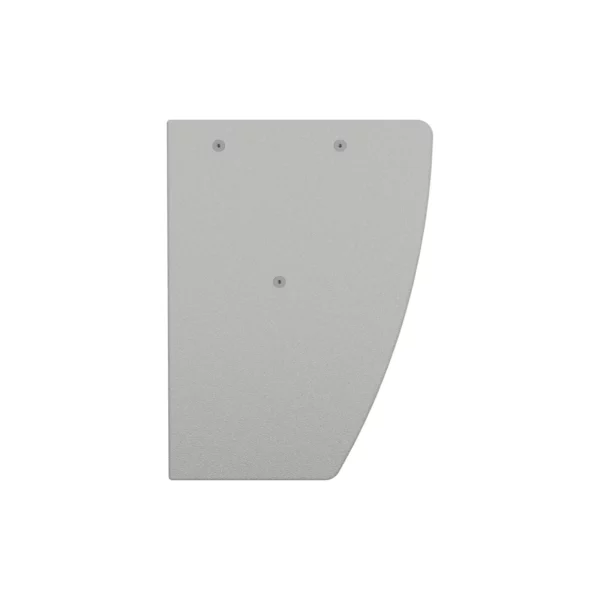

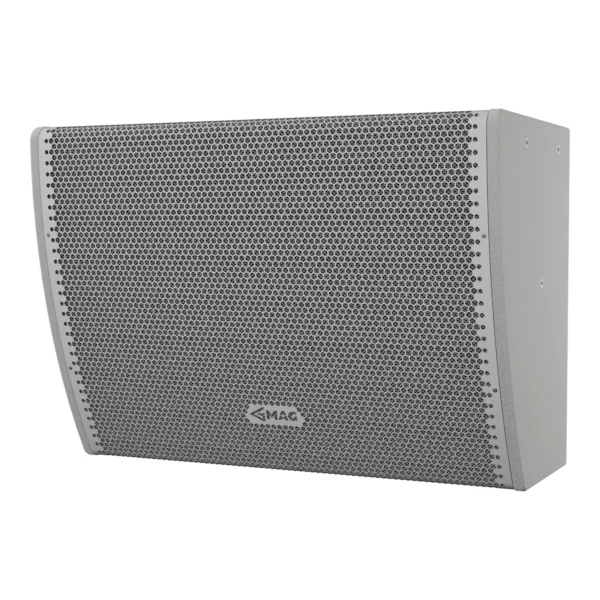

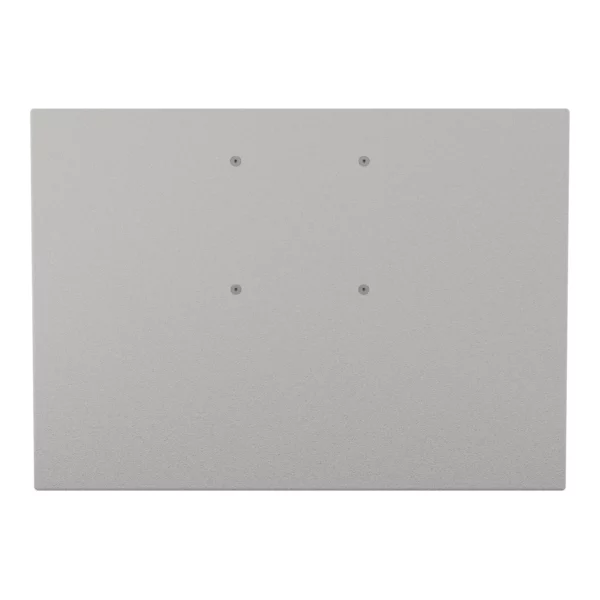

AIR-S18
Installation subwoofer
The AIR-S18 is a suspended installation subwoofer specifically designed to deliver smooth and deep bass reinforcement in the setup space.
Main features:
- Components: 18″ woofer with 4″ voice coil
- Nominal power: 1300 W
- Frequency response: 33 Hz – 300 Hz
- SPLmax: 138 dB
- 8 x M10 mounting point; 2 x M10 safety points; VESA 200 x 200
Technical data
| Main | Parametr |
|---|---|
| Type | Installation subwoofer |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 33 Hz – 300 Hz |
| Max SPL | 138 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 18", 4" VC |
| Impedance | 4 Ohm, 8 Ohm |
| Nominal power | 1 300 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 840 x 600 x 440 mm; 33.1" x 23.6" x 17.3" |
| Net weight | 50 kg; 110.2 lbs |
| Shipping weight | 55 kg; 121.2 lbs |
| Mounting | 2 x M10 safety points, 8 x M10 mounting point, VESA 200 x 200 |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
