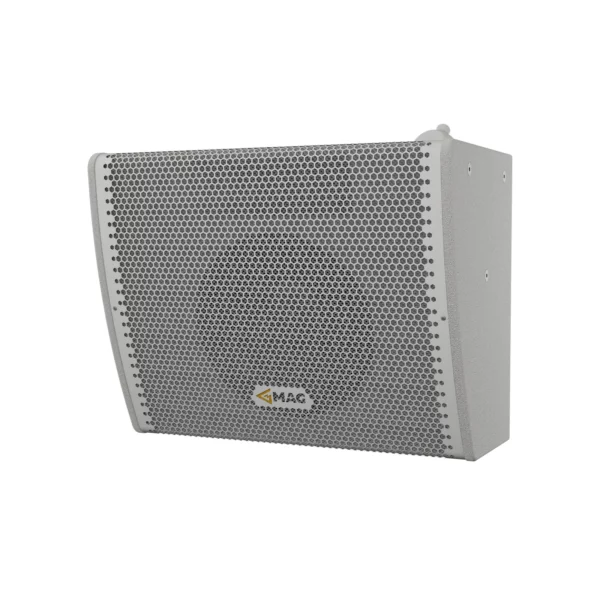

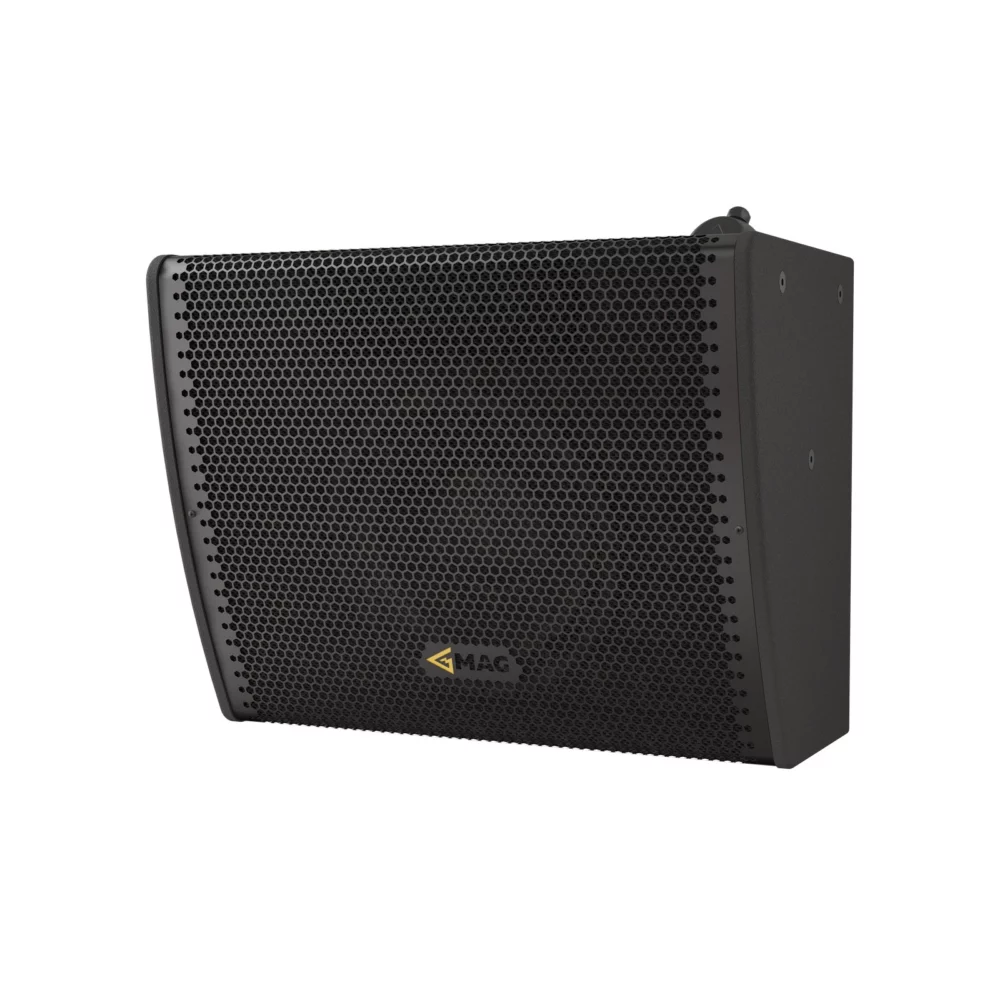

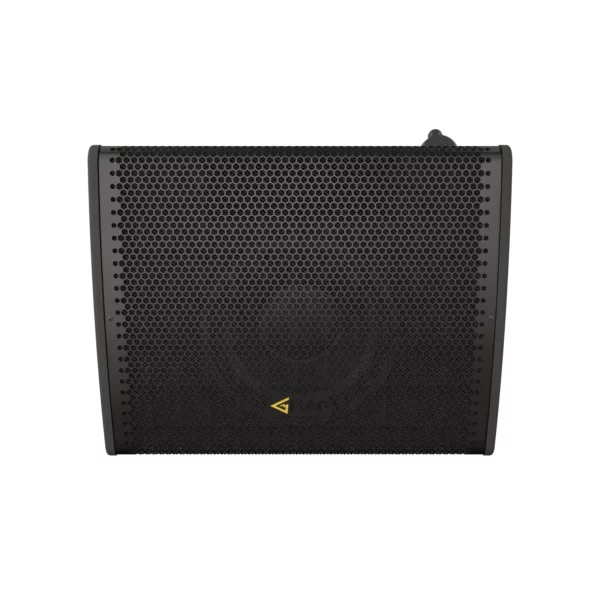

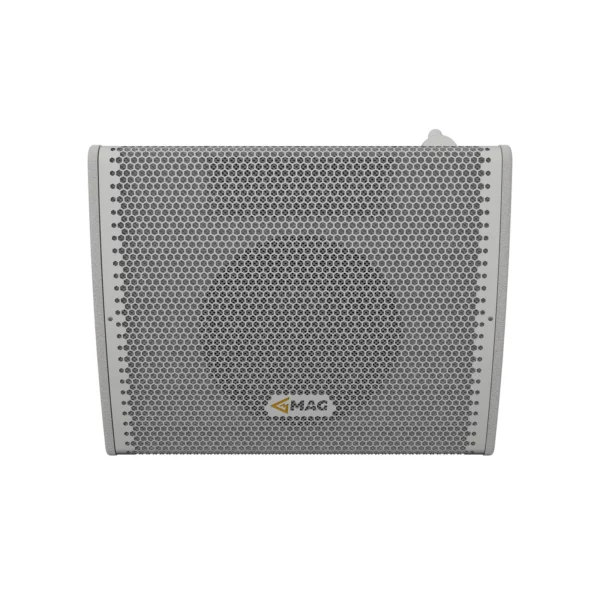

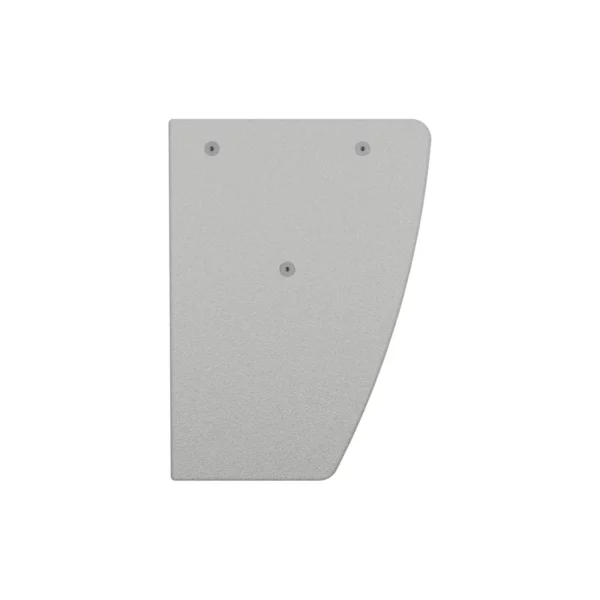

AIR-S12 IP
Weather-resistant subwoofer
The AIR-S12 IP is a suspended Weather-resistant subwoofer specifically designed to deliver smooth and deep bass reinforcement in the setup space.
Main features:
- Components: 12″ woofer with 3″ voice coil
- Nominal power: 450 W
- Frequency response: 45 Hz – 300 Hz
- SPLmax: 130.55 dB

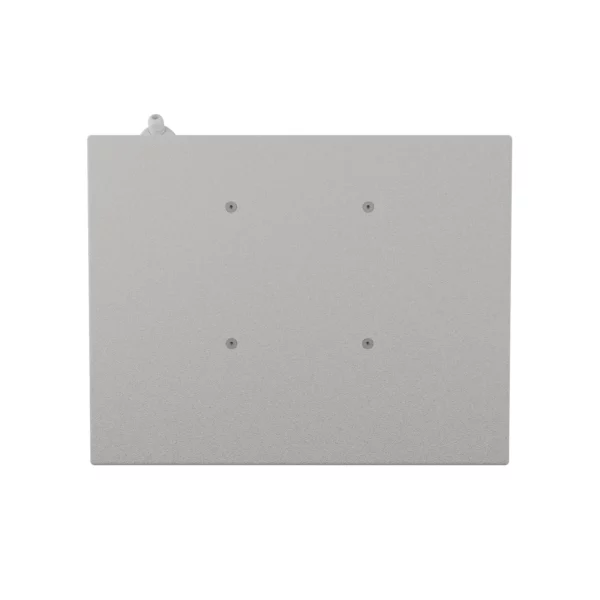

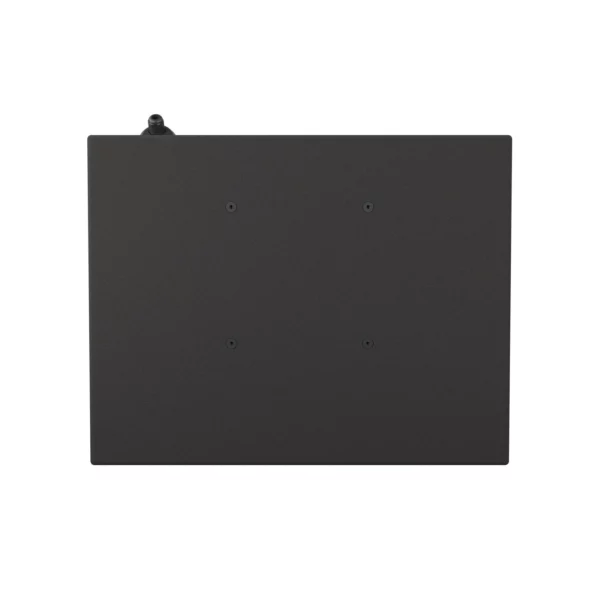

- 8 x M10 mounting point; 2 x M10 safety points; VESA 200 x 200
Technical data
| Main | Parametr |
|---|---|
| Type | Weather-resistant subwoofer |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 45 Hz – 300 Hz |
| Max SPL | 130.5 dB |
| Sensitivity (1W/1m) | 95 dB |
| LF Driver | 12", 3" VC |
| Impedance | 4 Ohm, 8 Ohm |
| Nominal power | 450 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 620 x 486 x 350 mm; 24.4" x 19.1" x 13.8" |
| Net weight | 29 kg; 63.9 lbs |
| Shipping weight | 33 kg; 72.8 lbs |
| Mounting | 2 x M10 safety points, 8 x M10 mounting point, VESA 200 x 200 |
| Weather protection | IP 54 weather-protection |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
