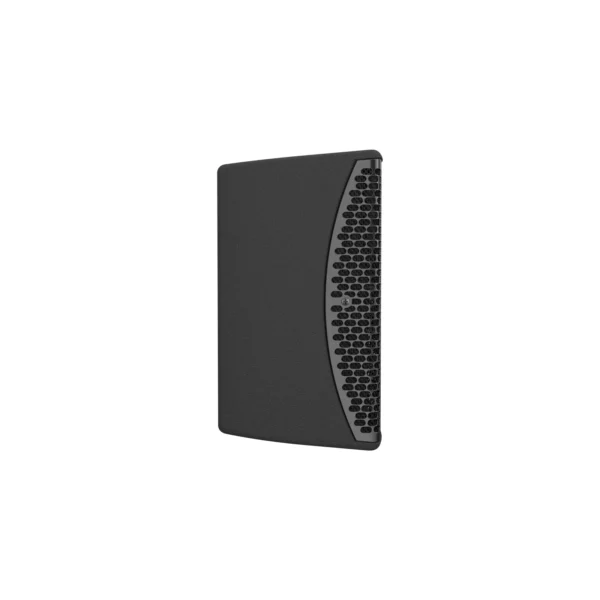

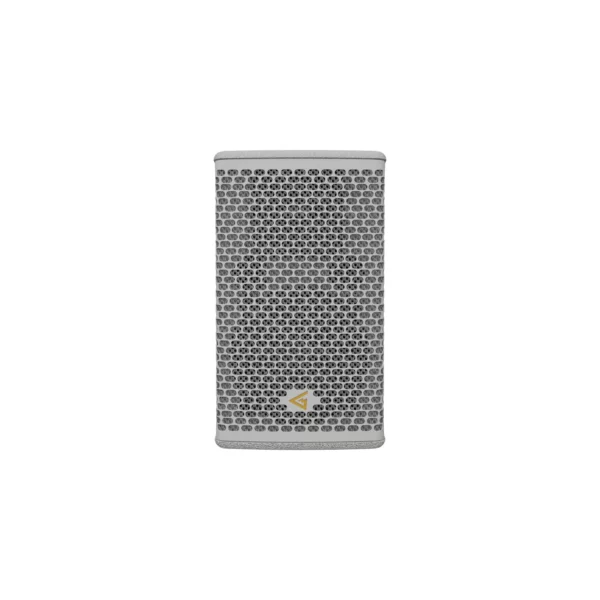

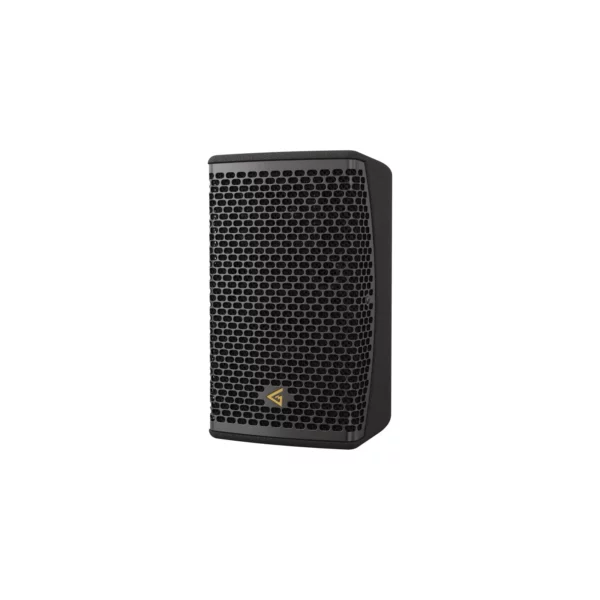

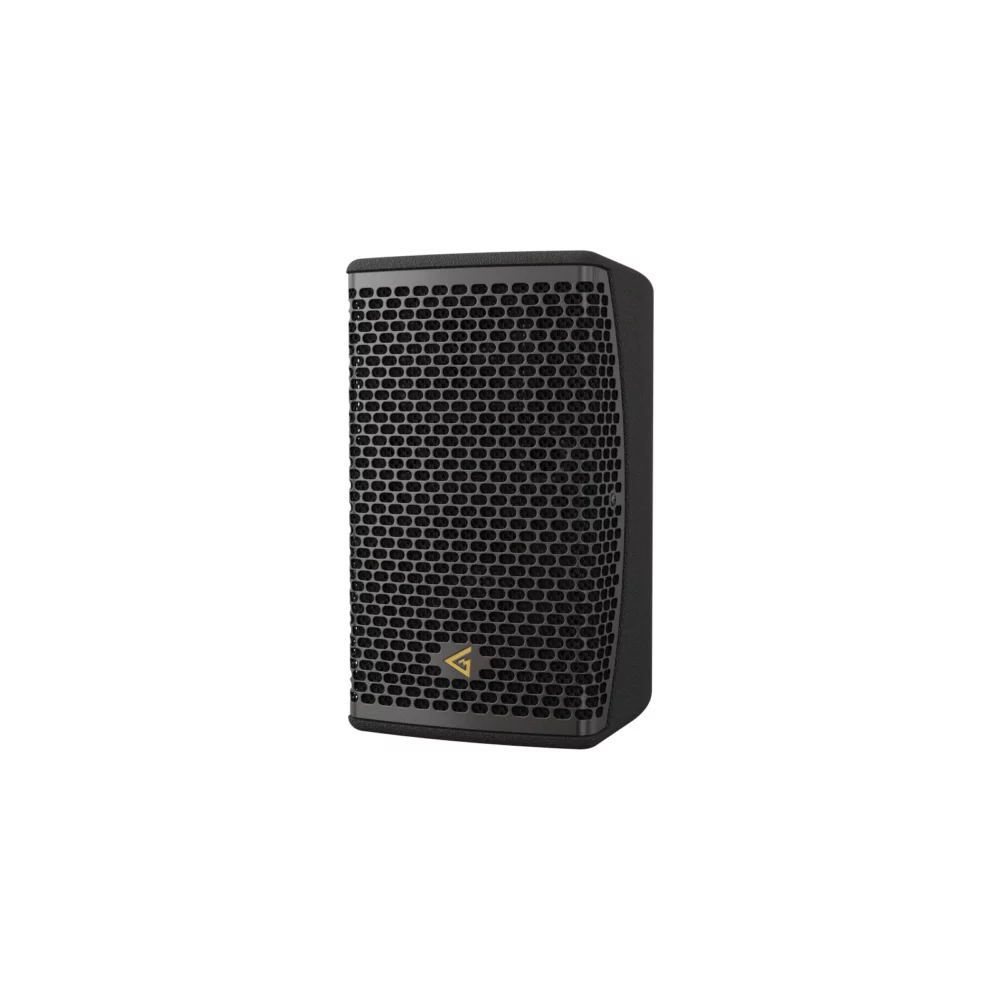

AIR-C5T
Passive Hi-Z installation speaker
The most compact system in the series, AIR-C5T, has received a 5.25″ woofer and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in both Hi-Z and Lo-Z versions.
Main features:
- Components: 5.25″, 1.25″ VC LF driver
- Nominal power: 70 W
- Works: 70V / 100V lines as well as 16 Ohm Lo-Z connections
- Frequency response: 80 Hz – 20 kHz
- SPLmax: 119.5 dB
- Coverage: 100° x 70°, rotatable horn
- VESA 50 x 50, Safety mounting point
AIR-C5T is part of MAG’s AIR-C installation series, a product line created to deliver true high-quality sound in environments where most compact speakers are built on compromises. It provides a refined, pleasant sonic character in a discreet form factor suited for commercial interiors of any scale.
Absolutely no flimsy plastic boxes that resonate! Each MAG AIR-C speaker is built in a sturdy, thick-walled composite enclosure featuring MAG’s unique Polycomp© hybrid anti-resonance technology. The loudspeaker box consists of 75% wood and 25% polyurethane, which penetrates the plywood fibers during molding to form a rigid structure. The choice of a combination of materials with different densities also suppresses parasitic vibrations, resulting in a special shape of the box, which significantly reduces the number of internal standing waves

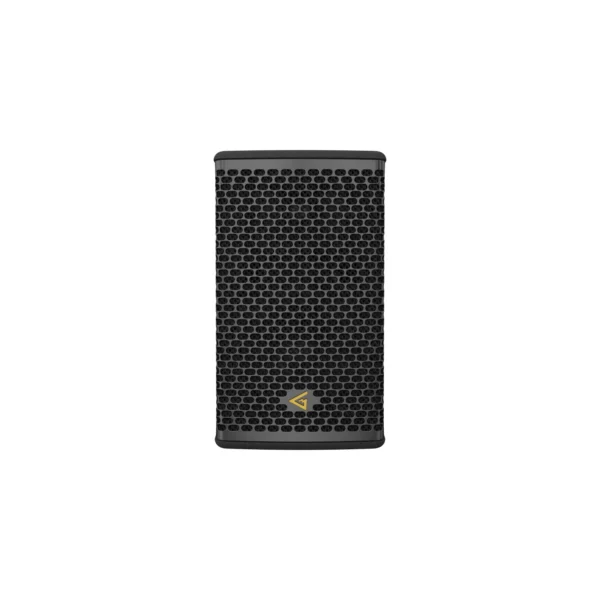

The MAG AIR models C5T use the best quality dome silk 1.25" tweeters, which provide a pleasant hi-fi character of the sound. The rotating HF horn allows you to accurately determine the listening coverage area at a wide angle of 100 x 70 degrees. The protective grille is easy to remove, which also gives access to easily adjust the dispersion from horizontal to vertical, even after installation in the interior. Optionally, we offer transformer versions C5T for 70/100V lines.

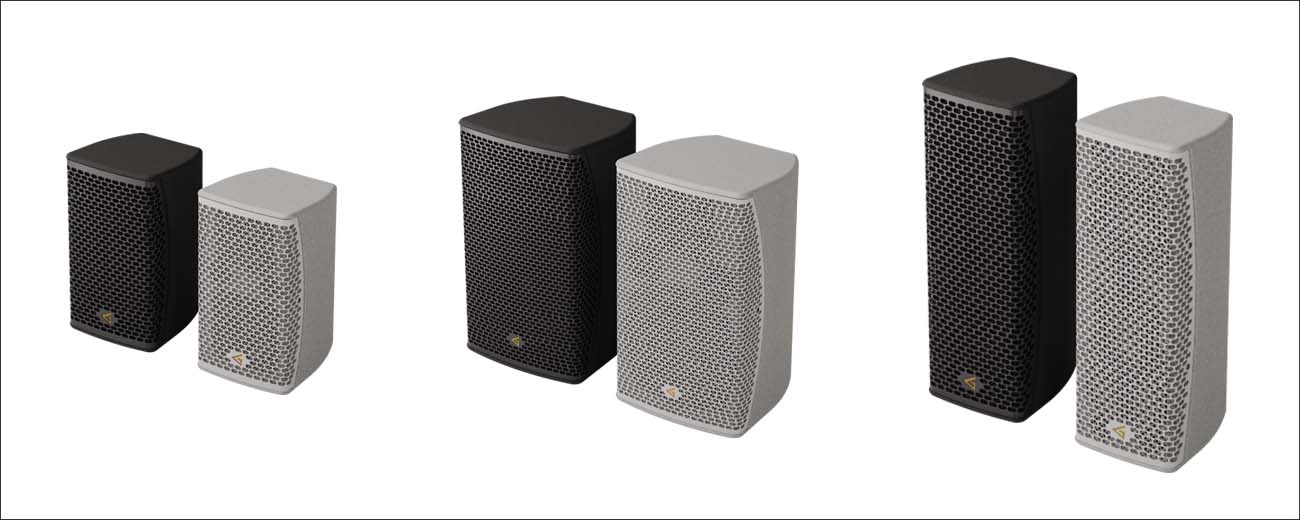

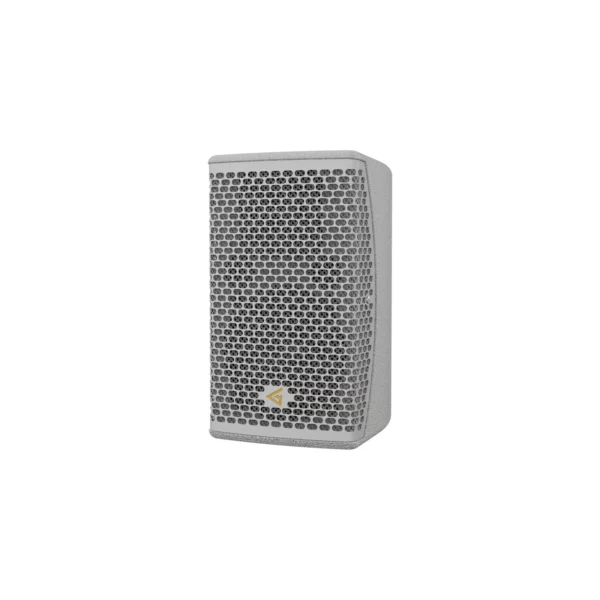

AIR-C5T shares the same reliability standards as the entire series: IP54 protection, stable long-term operation, and construction suited for both indoor environments and controlled outdoor zones such as terraces or verandas. Its elegant industrial design and availability in black or white make it easy to integrate into architectural spaces of any type.

To facilitate any installation, MAG Audio also offers two different, specially designed mounting brackets: for the wall and ceiling. These brackets make it possible to precisely align the acoustics in two axes and to fix them securely. The bracket is included in the delivery, but the type of configuration (wall or ceiling) must be selected at the time of ordering.

MAG Audio’s AIR-C is ideal for all installation applications requiring the highest possible sound quality, ease of installation, and 24/7 reliability: stores, shopping malls, cafes, bars, restaurants, clubs, theater lobbies, cinemas, circuses, cruise ships, cultural centers, summer playgrounds, sports facilities, hotels, conference halls, clubs, churches, etc. The availability of black and white colors in stock models will allow you to fit them into any interior. And if you need a special color, a RAL color chart is at your service for an extra fee.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive Hi-Z installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 80 Hz – 20 kHz |
| Max SPL | 119.5 dB |
| Sensitivity (1W/1m) | 89 dB |
| LF Driver | 5.25", 1.25" VC |
| HF Driver | 1” carbon fiber diaphragm, 1” VC, ND magnet |
| Nominal Coverage Angle H × V | 100° x 70°, rotatable horn |
| Impedance | 16 Ohm |
| Nominal power | 70 W |

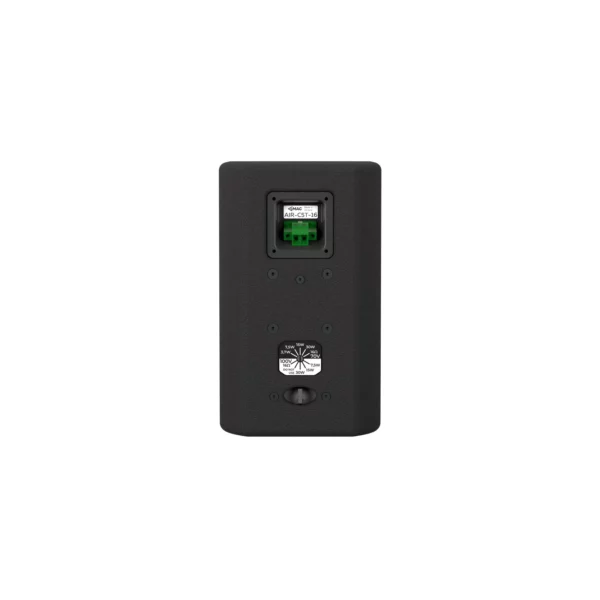

| Transformer taps 70V | 3.7 W / 7.5 W / 15 W / 30 W |
| Transformer taps 100V | 7.5 W / 15 W / 30 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 160 x 277 x 157 mm; 6.3" x 10.9" x 6.18" |
| Net weight | 3.6 kg; 7.9 lbs |
| Shipping weight | 4.4 kg; 9.7 lbs |
| Mounting | Safety mounting point, VESA 50 x 50 |
| Weather protection | IP54 rated |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Color | Black, White |
