AIR-C24
Passive installation speaker
With a small visual footprint, the AIR-C24 is a high-performing system with two 4” woofers and an HF driver on a rotatable horn. It is compatible with horizontal and vertical adjustable mountings and is available in 8 Ohms for ease of parallel usage.
Main features:
- Components: 2 x 4” / 1″
- Nominal power: 100 W
- Frequency response: 85 Hz – 20 kHz
- SPLmax: 123 dB
- Coverage: 100° x 70°, rotatable horn
- VESA 50 x 50, Safety mounting point
AIR-C24 is part of MAG’s AIR-C installation series, a product line created to deliver true high-quality sound in environments where most compact speakers are built on compromises. It's provides a refined, pleasant sonic character in a discreet form factor suited for commercial interiors of any scale.

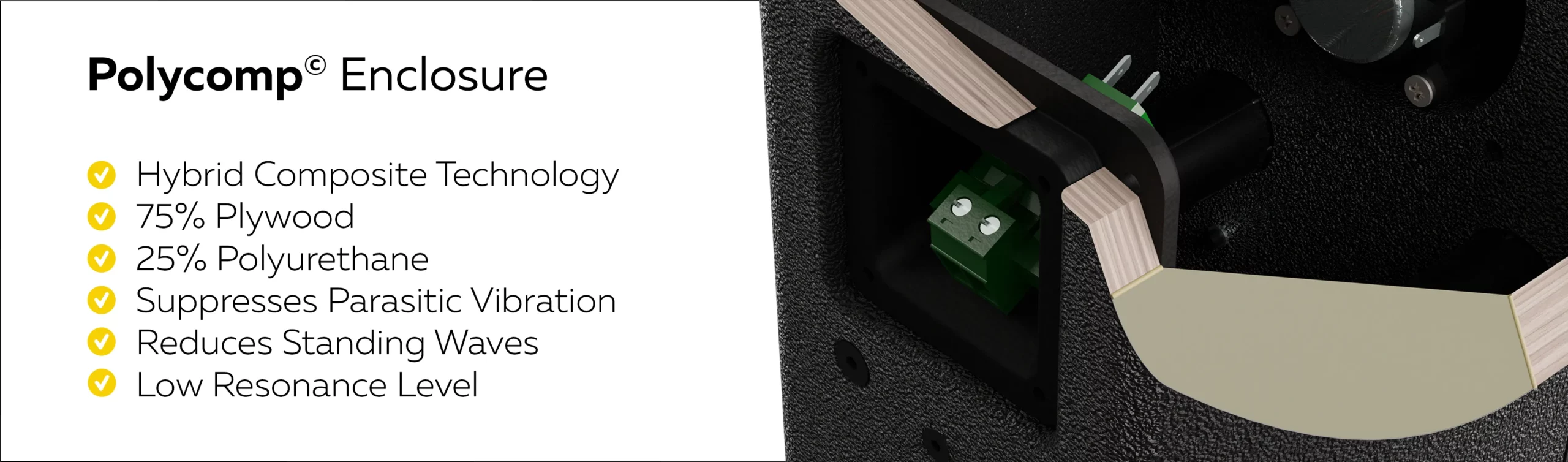

Unlike typical lightweight plastic installation boxes, AIR-C24 is built in a rigid, thick-walled composite enclosure using MAG’s Polycomp© hybrid anti-resonance technology. The cabinet consists of 75% wood and 25% polyurethane, which penetrates the plywood structure during molding to create a stiff, high-density shell. This combination of materials greatly suppresses unwanted vibrations and minimizes internal standing waves, allowing AIR-C24 to reproduce clean, accurate sound even at elevated levels.
The model uses a pair of high-excursion 4″ LF drivers made of waterproof paper and a 1″ silk-dome tweeter, giving the speaker a natural, hi-fi-like top end and balanced midrange — characteristics that define the AIR-C sound signature. A rotatable HF horn (100° × 70°) allows the installer to optimize coverage in horizontal or vertical orientation, with the removable grille giving easy access for post-installation adjustment.
AIR-C24 shares the same reliability standards as the entire series: IP54 protection, stable long-term operation, and construction suited for both indoor environments and controlled outdoor zones such as terraces or verandas. Its elegant industrial design and availability in black or white make it easy to integrate into architectural spaces of any type.
Compact yet capable, AIR-C24 is ideal for background and near-field foreground sound in cafés, restaurants, boutiques, bars, hotel areas, galleries, offices, conference rooms and other commercial venues where sound quality and visual discretion must go hand in hand.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 85 Hz – 20 kHz |
| Max SPL | 123 dB |
| Sensitivity (1W/1m) | 91 dB |
| LF Driver | 2 x 4”, 1" VC |
| HF Driver | 1” carbon fiber diaphragm, 1” VC, ND magnet |
| Nominal Coverage Angle H × V | 100° x 70°, rotatable horn |
| Impedance | 8 Ohm |
| Nominal power | 100 W |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 385 x 134 x 146 mm; 15,16” x 5,28” x 5,75” |
| Net weight | 4,4 kg; 9,7 lbs |
| Shipping weight | 5,2 kg; 11,5 lbs |
| Mounting | VESA 50 x 50; Safety mounting point |
| Weather protection | IP54 rated |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
