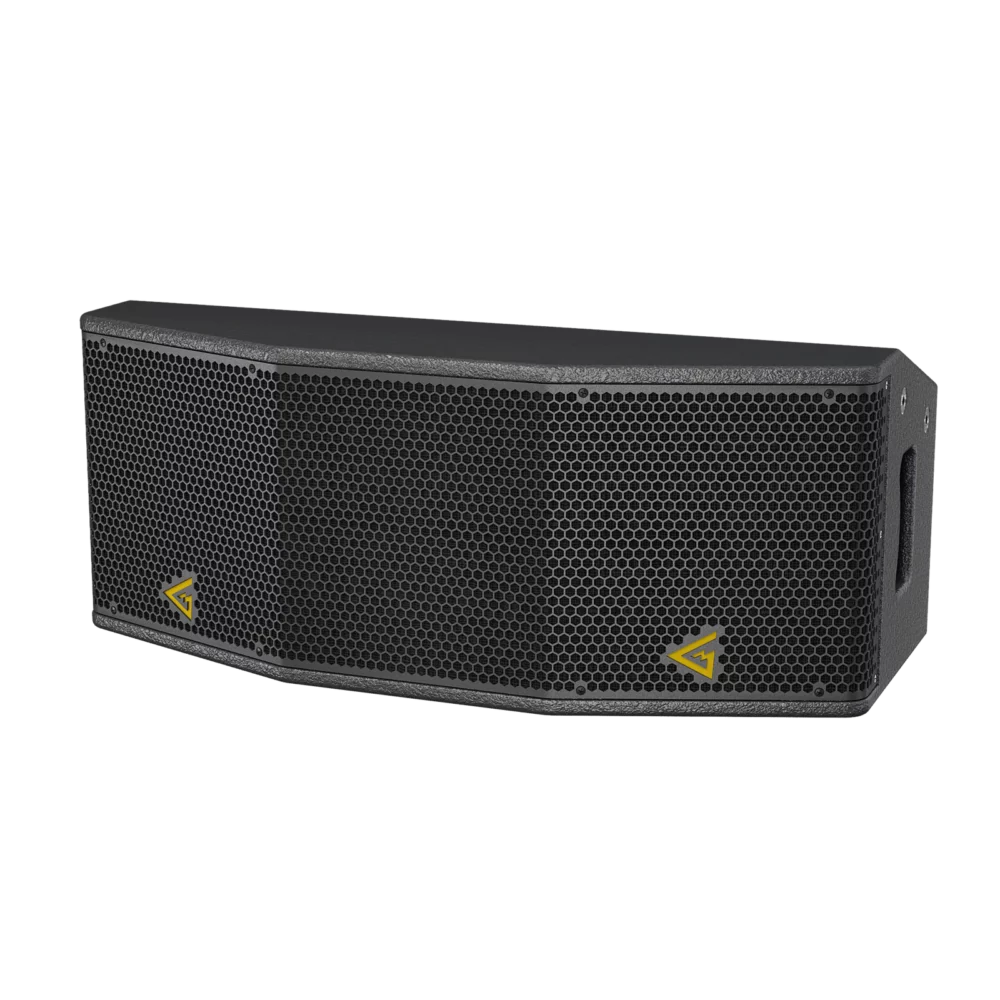

AIR-210 IP (Discontinued)
Weather-resistant speaker
Powerful weather-resistant installation-dedicated system with 2 x 10” woofers. Compact and carefully optimized enclosures have been designed to make the model fit into any interior, achieving maximum performance per the space occupied.
Main features:
- Components: Two 10” woofers with 3” VC
- Nominal power: 850 W
- Frequency response: 55 Hz – 18 kHz
- SPLmax: 136.5 dB
- Coverage: 85° x 55°
- 8 x M10 Mounting points; M10 safety point
Technical data
| Main | Parametr |
|---|---|
| Type | Installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 55 Hz – 18 kHz |
| Max SPL | 136 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 2 x 10", 3" VC |
| HF Driver | 2", 3" VC |
| Nominal Coverage Angle H × V | 85° x 55° |
| Impedance | 4 Ohm, 8 Ohm |
| Nominal power | 850 W |
| Connections and physical data | Parametr |
| Connectors | Barrier strip |
| Dimensions (W x H x D) | 750 x 300 x 353 mm; 29.5" x 11.8" x 13.9" |
| Net weight | 35 kg; 77.2 lbs |
| Shipping weight | 37 kg; 82 lbs |
| Mounting | 8 x M10 mounting point |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
| Weather protection | IP 54 weather-protection |
| Color | Black |
