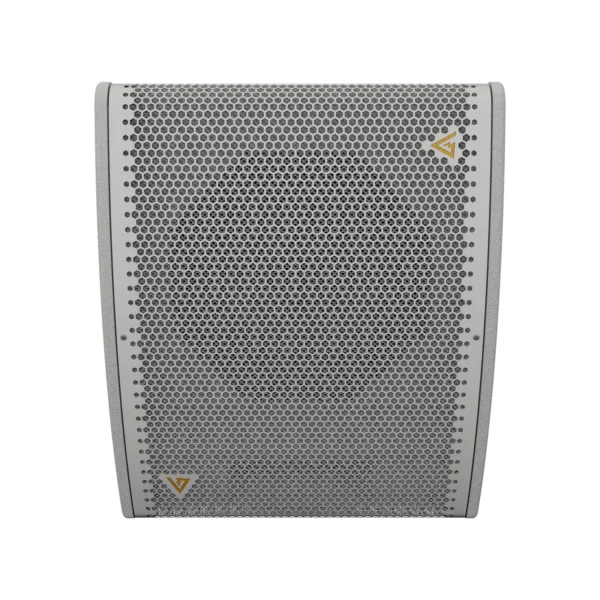

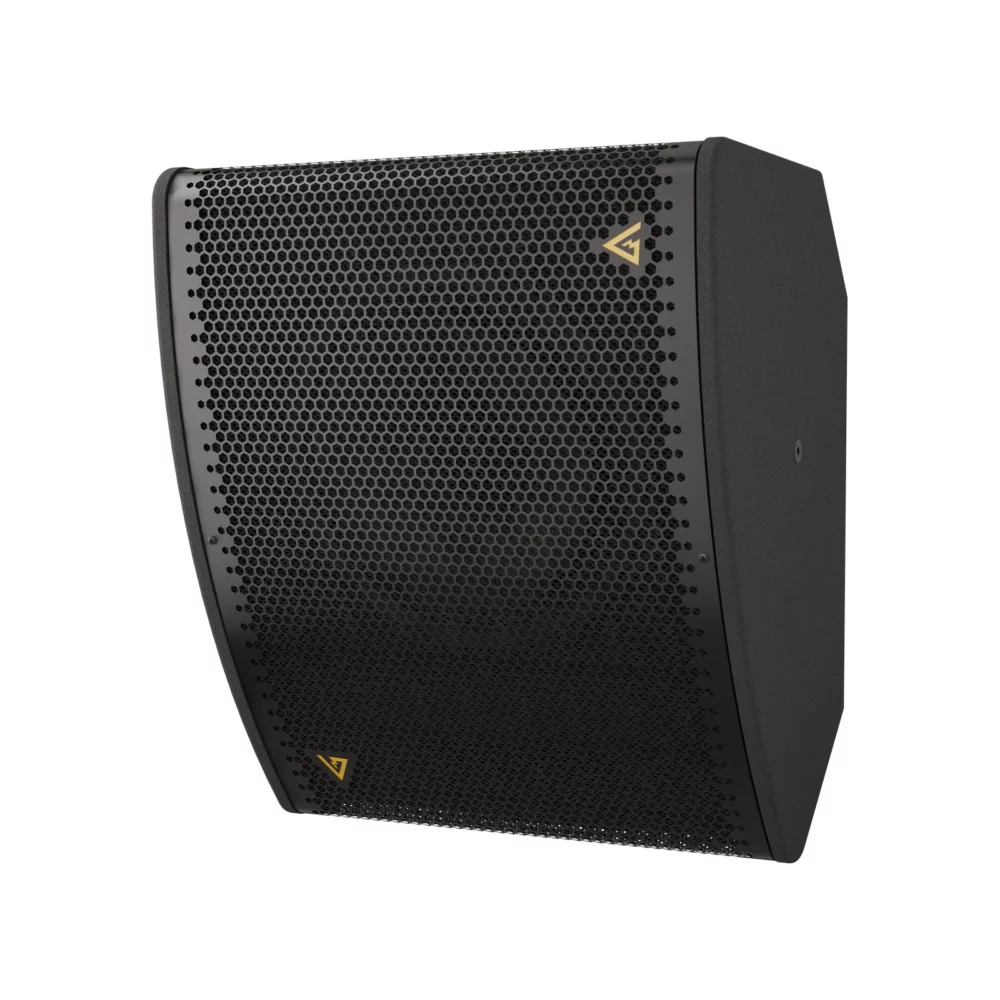

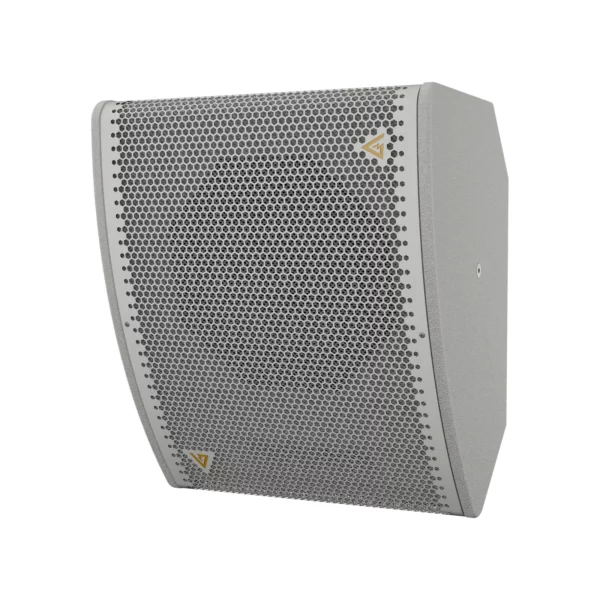

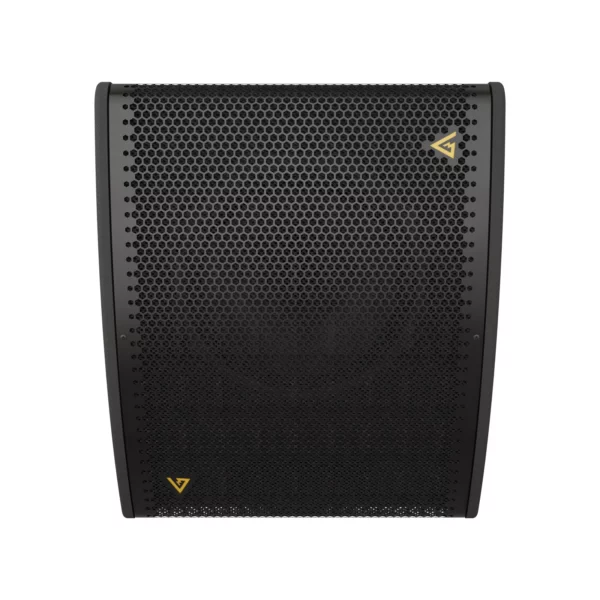

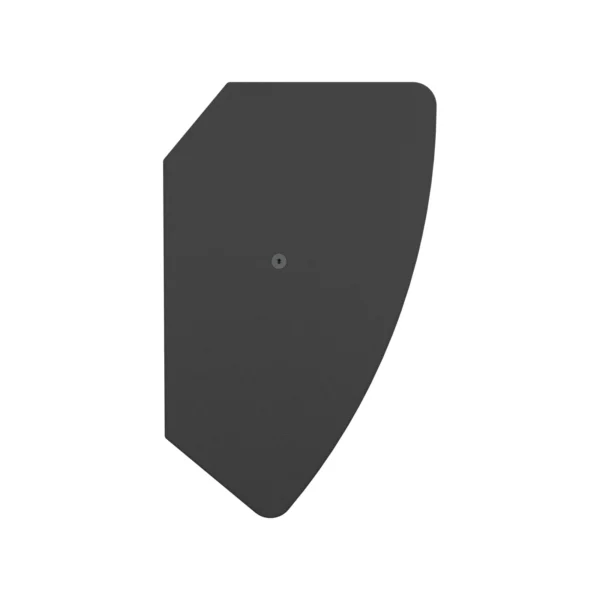

AIR-122
Passive installation speaker
AIR-122 is a passive installation system based on a 12” coaxial woofer. Compact size, light weight, and numerous mounting options make AIR-122 a system of high usability that achieves the most performance per the space occupied.
Main features:
- Components: 12″ coaxial driver
- Nominal power: 500 W
- Frequency response: 55 Hz – 18 kHz
- SPLmax: 132 dB
- Coverage: 80° x 80°
- VESA 100 x 100; 2 x M10 Mounting points; M10 safety point
AIR systems offer a wide range of installation options:

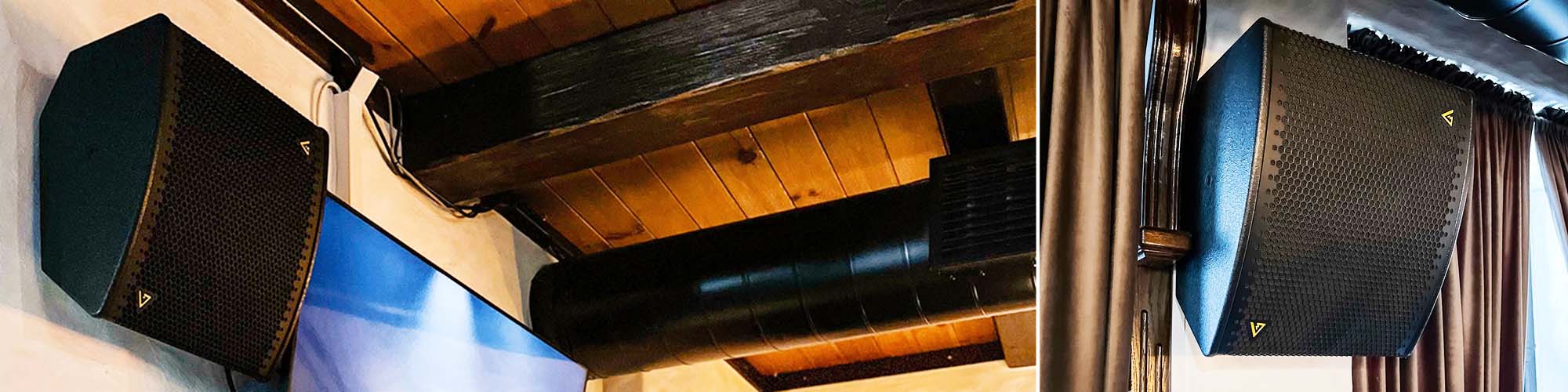

Wall mounting.

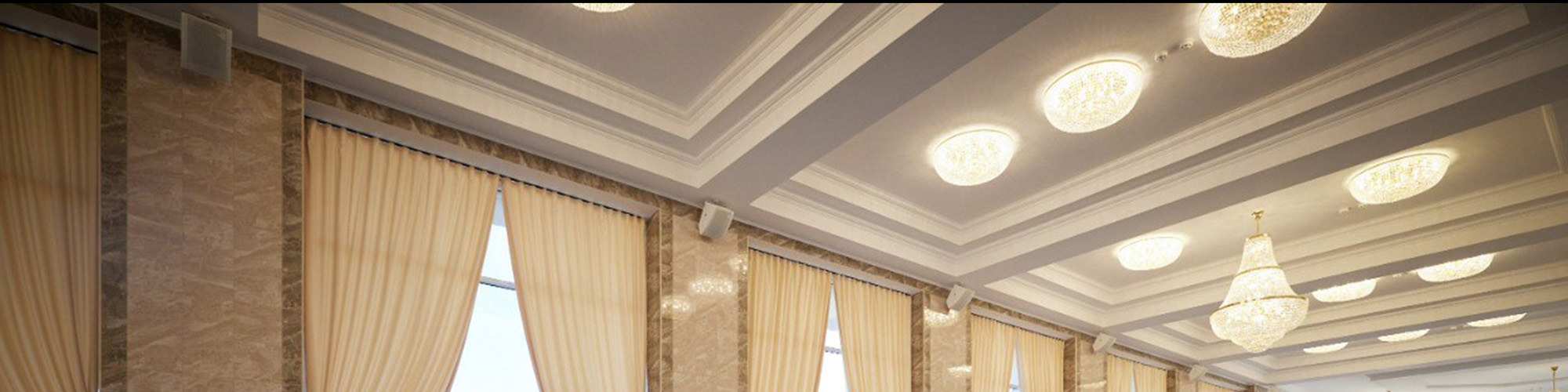

Ceiling mounting.

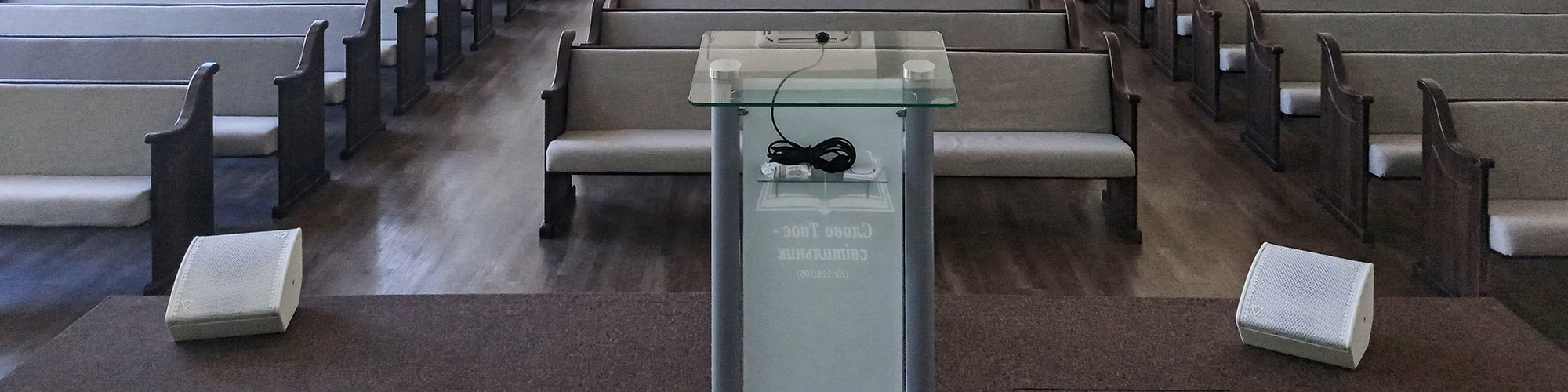

Floor-standing frontfill installation.
Technical data
| Main | Parametr |
|---|---|
| Type | Passive installation speaker |
| Acoustical & Electrical data | Parametr |
| Frequency response (-10dB) | 55 Hz – 18 kHz |
| Max SPL | 132 dB |
| Sensitivity (1W/1m) | 96 dB |
| LF Driver | 12" coaxial |
| Nominal Coverage Angle H × V | 80° x 80° |
| Impedance | 4 Ohm, 8 Ohm |
| Connections and physical data | Parametr |
| Connectors | Phoenix |
| Dimensions (W x H x D) | 470 x 554 x 344 mm; 18.5" x 21.8" x 13.54" |
| Net weight | 24 kg; 52.9 lbs |
| Shipping weight | 27 kg; 59.5 lbs |

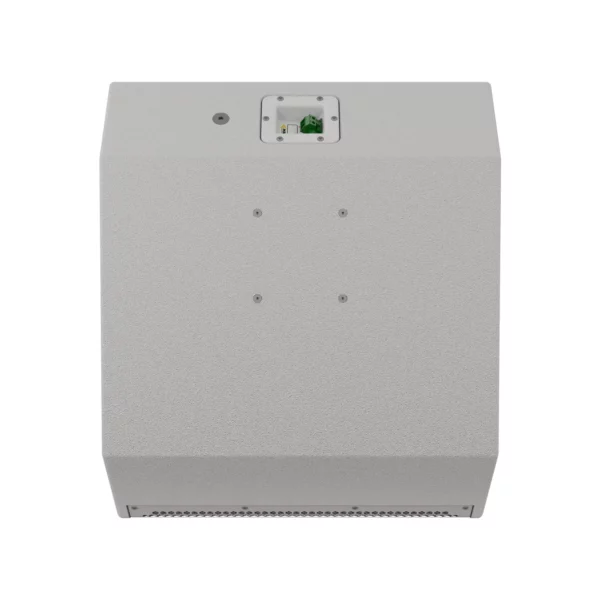

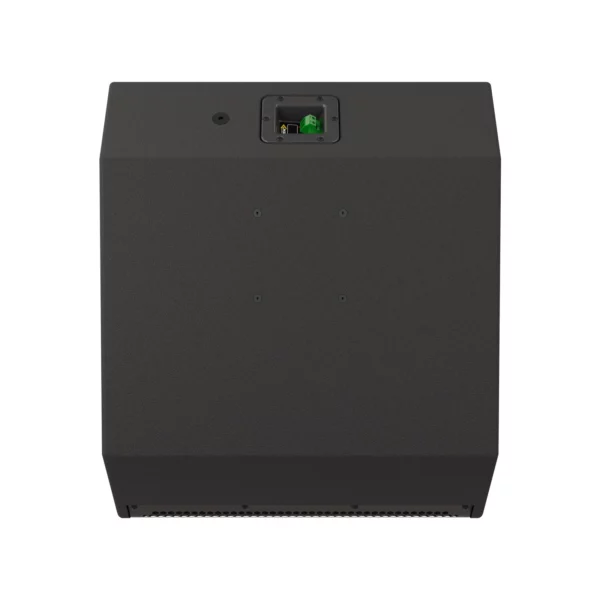

| Mounting | 2 x M10 mounting points, M10 safety point, VESA 100 x 100 |
| Enclosure material | Polycomp©, wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |

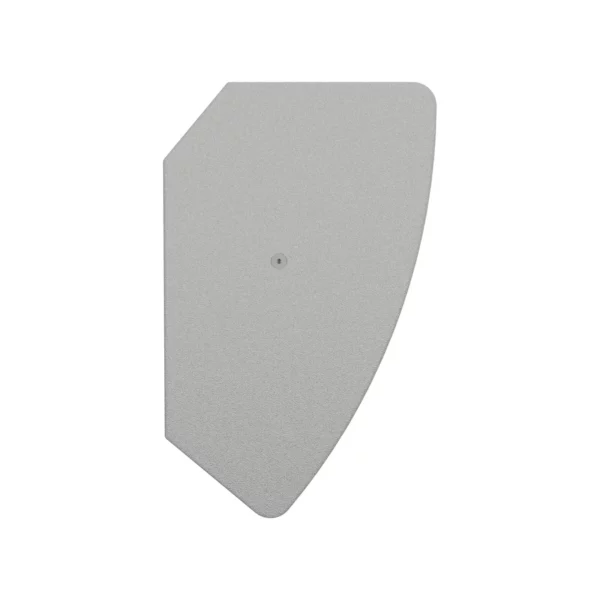

| Color | Black, White |
